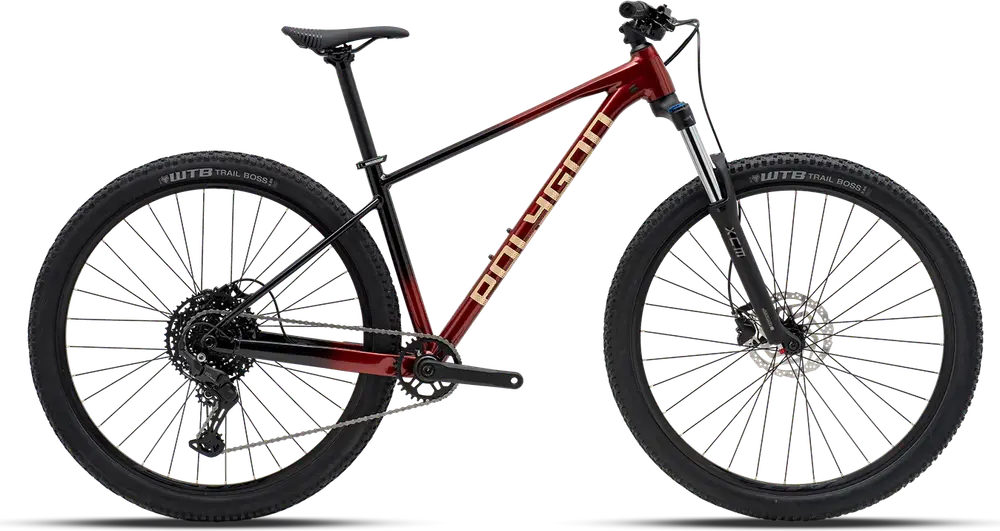

2027 Polygon

XTRADA 5

A 29″ aluminum frame hardtail trail bike with mid-range components.
Compare the full range

Manufacturer Price

$649
Price History
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
BrakesShimano Hydraulic Disc
View on polygonbikes.comLearn about Polygon
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
XTRADA 5
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

XTRADA 5

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full XTRADA model range

View Comparison
Sizing
SM

4'11" – 5'5"

MD

5'3" – 5'9"

LG

5'7" – 6'1"

XL

5'11" – 6'5"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

aluminum

BB Standard: BSA, Threaded

Color: Red Black

Fork

SUNTOUR XCM 32 120MM TRAVEL BOOST THRU AXLE

Travel: 120mm

Spring Type: Coil

Shock

-

Bottom Bracket

PROWHEEL 2 PIECE CRANKSET BSA THREADED

Headset

ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

Handlebar

POLYGON SPORT, W: 760mm, BB: 31.8mm, R/D: 20mm, B: 9degree

Saddle

LINC VOID SADDLE, STEEL ø 7mm

Seatpost

POLYGON SPORT SEATPOST, DXL: 30.9 x 350mm, OFFSET: 0mm, SEAT CLAMP: 34.9mm QR TYPE

Type: Rigid

Pedals

ONE PIECE PP BODY

Groupset
Rear Derailleur

SHIMANO CUES RD-U6000 DIRECT ATTACH

Crank

PROWHEEL RMZ-MD25S-TT 32T 170mm

Shifters

SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER

Cassette

SHIMANO CS-LG300 10-SPEED 11-48T

Chain

KMC X-GLIDE

Brakes

SHIMANO MT200 HYDRAULIC DISC BRAKE

Type: Shimano Hydraulic Disc

Brake Levers

SHIMANO BL-MT200

Wheels
Rims

ALLOY DOUBLE WALL H: 19mm W: 23mm 32H FOR TYRE 622-68

Spokes

F: 14G STAINLESS NDS: 294mm DS: 292mm 12MM NIPPLE BRASS / R: 14G STAINLESS NDS: 292mm DS: 290 12MM NIPPLE BRASS

Front Hub

ALLOY HUB THRU AXLE 15x110mm 32H CENTERLOCK

Rear Hub

ALLOY HUB THRU AXLE 12x148mm 32H CENTERLOCK

Tires

WTB TRAIL BOSS 29"X2.25"

Disc Rotors

SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK
