    XTRADA 52027 Polygon
    Recommended
    MSRP
    $649
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    3.9
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    polygonbikes.com

    Summary

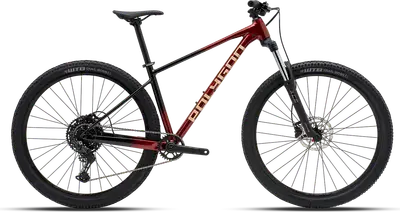

    		The Polygon XTRADA 5 is a 29″ aluminum frame hardtail trail bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    XTRADA 5
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    XTRADA 5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    XTRADA 52027 Polygon
    Frame

    aluminum

    BB Standard: BSA, Threaded

    Color: Red Black

    Fork

    SUNTOUR XCM 32 120MM TRAVEL BOOST THRU AXLE

    Travel: 120mm

    Spring Type: Coil

    Shock

    -

    Bottom Bracket

    PROWHEEL 2 PIECE CRANKSET BSA THREADED

    Headset

    ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

    Handlebar

    POLYGON SPORT, W: 760mm, BB: 31.8mm, R/D: 20mm, B: 9degree

    Saddle

    LINC VOID SADDLE, STEEL ø 7mm

    Seatpost

    POLYGON SPORT SEATPOST, DXL: 30.9 x 350mm, OFFSET: 0mm, SEAT CLAMP: 34.9mm QR TYPE

    Type: Rigid

    Pedals

    ONE PIECE PP BODY

    Groupset
    Rear Derailleur

    SHIMANO CUES RD-U6000 DIRECT ATTACH

    Crank

    PROWHEEL RMZ-MD25S-TT 32T 170mm

    Shifters

    SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER

    Cassette

    SHIMANO CS-LG300 10-SPEED 11-48T

    Chain

    KMC X-GLIDE

    Brakes

    SHIMANO MT200 HYDRAULIC DISC BRAKE

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    ALLOY DOUBLE WALL H: 19mm W: 23mm 32H FOR TYRE 622-68

    Spokes

    F: 14G STAINLESS NDS: 294mm DS: 292mm 12MM NIPPLE BRASS / R: 14G STAINLESS NDS: 292mm DS: 290 12MM NIPPLE BRASS

    Front Hub

    ALLOY HUB THRU AXLE 15x110mm 32H CENTERLOCK

    Rear Hub

    ALLOY HUB THRU AXLE 12x148mm 32H CENTERLOCK

    Tires

    WTB TRAIL BOSS 29"X2.25"

    Disc Rotors

    SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK
