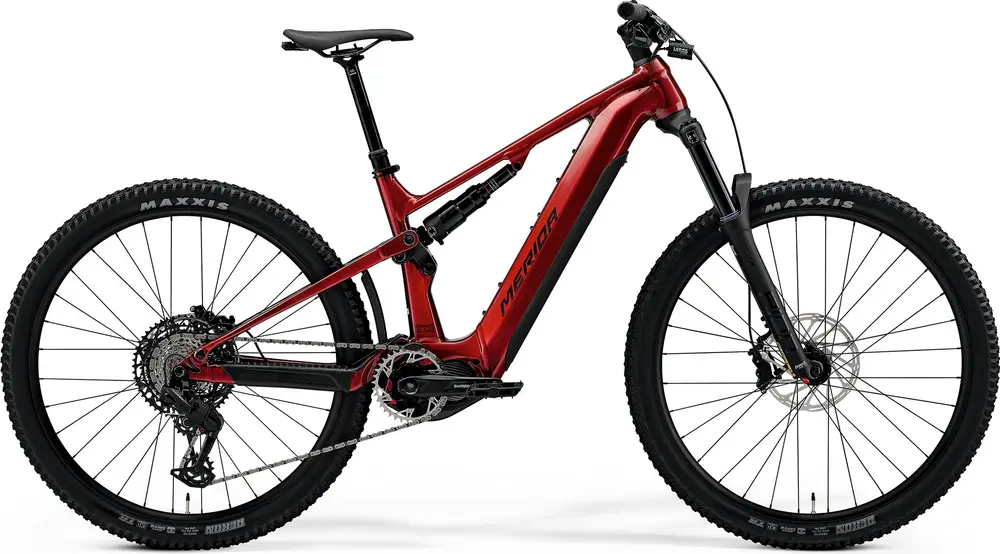

2026 Merida

eONE-FORTY 675

A 29″ aluminum frame full suspension trail e-bike with high-end components.
Compare the full range

Manufacturer Price

A$8,299($5,918)
Price History
Weight56.2 lbs
FrameAluminum
SuspensionFull, 133 / 150mm
ForkSuntour AION
ShockRockShox Deluxe Select
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXX Eagle Transmission, Eagle 70 Transmission
MotorShimano 600W 85Nm mid-drive
BatteryShimano 712Wh
BrakesSRAM DB8 Hydraulic Disc
SeatpostDropper
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eONE-FORTY 675
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

eONE-FORTY 675

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full eONE-FORTY model range

View Comparison
Price History
Reviews
Bikerumor
Merida Revamps Lighter eMTB eOne-Sixty & eOne-Forty with More eBike Range & Travel

Mar 2024 · Cory Benson

3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...

Read Review

EMTB Forums
The new Merida eOne-Sixty is finally here, and the eOne-Forty too

Mar 2024 · Knut Nes

Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...

Read Review

Geometry
Specs
Build
Frame

eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, 750 Wh

BB Standard: STEPS, Press Fit

Fork

SR Suntour Aion 36X, Air, 150mm suspension travel, 44mm fork off set, 29x2.6" max wheelsize

Travel: 150mm

Spring Type: Air

Shock

Rock Shox Deluxe Select

Travel: 133mm

Bottom Bracket

STEPS, press-fit

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Handlebar

MERIDA EXPERT eTR, 780mm width

Saddle

MERIDA COMP SL, V-mount, incl. MERIDA minitool

Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M: 170mm travel seatpost - L: 200mm travel seatpost - XL: 230mm travel seatpost

Type: Dropper

Pedals

VP VPE-533

Groupset
Rear Derailleur

SRAM Eagle 70 Transmission

Crank

SRAM XX Eagle Transmission E-MTB for Steps, 36 teeth

Shifters

SRAM Dropper Lever MMX

Cassette

SRAM XS-1270 T-TYPE, 10-52 teeth, 12 speed

Chain

SRAM Eagle 70, Flattop

Brakes

SRAM DB8 stealth, 4 piston

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless valves not included), 29"

Spokes

Black stainless, black nipples

Front Hub

Novatec SL-ELITE D041SB-B15, 110x15mm width front hub, 32 spoke holes, 6 bolt

Rear Hub

Novatec SL-TEAM D462SB-S3S-B12-11S, 148x12mm width rear hub, 32 spoke holes, 6 bolt

Tires

MAXXIS REKON, 29x2.4", fold, 3C EXO MaxxTerra

Disc Rotors

SRAM CenterLine, 200mm

Electric Components
Motor

Shimano EP801, 85Nm

Battery

Shimano EN817, 712Wh

Display

Shimano SC-EN600

Accessories
Fenders

EOF-204
