    eONE-FORTY 6752026 Merida
    Recommended
    MSRP
    ($5,918)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		56.2 lbs
    6.2
    Frame
    		Aluminum
    		Suntour AION
    		RockShox Deluxe Select
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM DB8 Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		Shimano 712Wh
    		XX Eagle Transmission, Eagle 70 Transmission
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		133mm
    Brand Site

    merida-bikes.com

    Summary

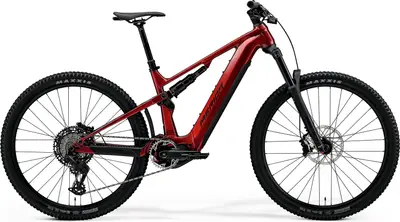

    		The Merida eONE-FORTY 675 is a 29″ aluminum frame full suspension trail e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY 675
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    eONE-FORTY 675

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-FORTY 6752026 Merida
    Frame

    eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, 750 Wh

    BB Standard: STEPS, Press Fit

    Fork

    SR Suntour Aion 36X, Air, 150mm suspension travel, 44mm fork off set, 29x2.6" max wheelsize

    Travel: 150mm

    Spring Type: Air

    Shock

    Rock Shox Deluxe Select

    Travel: 133mm

    Bottom Bracket

    STEPS, press-fit

    Headset

    Acros ICR MERIDA EXTERNAL neck w/ Blocklock

    Handlebar

    MERIDA EXPERT eTR, 780mm width

    Saddle

    MERIDA COMP SL, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M: 170mm travel seatpost - L: 200mm travel seatpost - XL: 230mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-533

    Groupset
    Rear Derailleur

    SRAM Eagle 70 Transmission

    Crank

    SRAM XX Eagle Transmission E-MTB for Steps, 36 teeth

    Shifters

    SRAM Dropper Lever MMX

    Cassette

    SRAM XS-1270 T-TYPE, 10-52 teeth, 12 speed

    Chain

    SRAM Eagle 70, Flattop

    Brakes

    SRAM DB8 stealth, 4 piston

    Type: SRAM DB8 Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless valves not included), 29"

    Spokes

    Black stainless, black nipples

    Front Hub

    Novatec SL-ELITE D041SB-B15, 110x15mm width front hub, 32 spoke holes, 6 bolt

    Rear Hub

    Novatec SL-TEAM D462SB-S3S-B12-11S, 148x12mm width rear hub, 32 spoke holes, 6 bolt

    Tires

    MAXXIS REKON, 29x2.4", fold, 3C EXO MaxxTerra

    Disc Rotors

    SRAM CenterLine, 200mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Shimano EN817, 712Wh

    Display

    Shimano SC-EN600

    Accessories
    Fenders

    EOF-204
