Today’s Deals2025 Merida

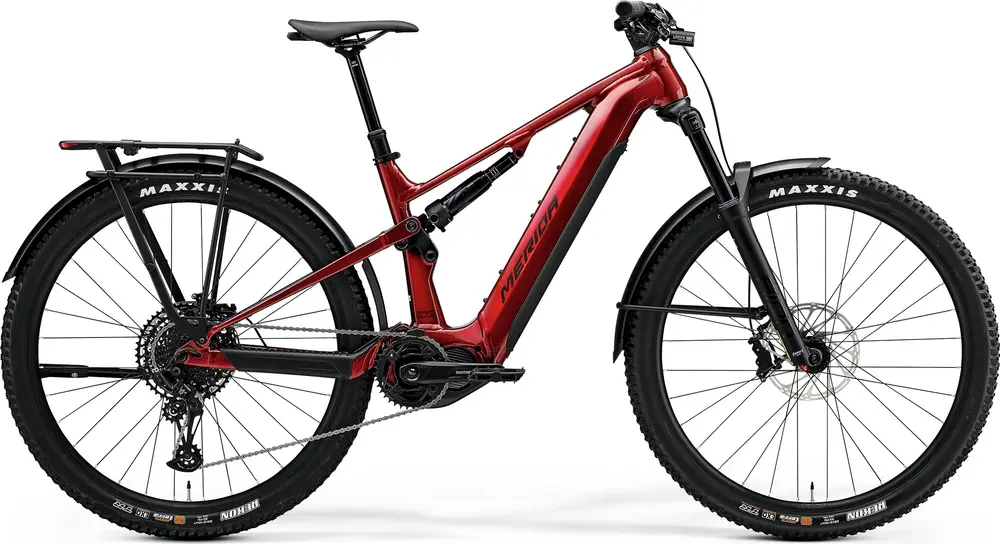

eONE-FORTY 675 EQ
A 29″ aluminum frame full suspension trail e-bike with high-end components.
Compare the full range
Manufacturer Price
£5,400($7,265)| Weight | 62.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 133 / 150mm |
| Fork | Suntour AION |
| Shock | RockShox Deluxe Select |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle |
| Motor | Shimano 600W 85Nm mid-drive |
| Battery | 750Wh |
| Brakes | SRAM DB8 Hydraulic Disc |
| Seatpost | Dropper |
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
| Frame | eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, 750 Wh BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | SR Suntour Aion 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize Travel: 150mm Spring Type: Air |
| Shock | Rock Shox Deluxe Select Travel: 133mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Stem | MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes |
| Handlebar | MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB |
| Saddle | MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool |
| Seatpost | MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost Type: Dropper |
| Pedals | VP VPE-533 |
| Rear Derailleur | SRAM NX Eagle |
|---|---|
| Crank | SRAM Eagle Transmission E-MTB chainring, 36 teeth |
| Shifters | Limotech RM10 (For SRAM MMX) / SRAM NX Eagle Single Click |
| Cassette | SRAM CS PG1230 EAGLE 11-50T |
| Chain | SRAM NX Eagle |
| Brakes | SRAM DB8 stealth, 4 piston Type: SRAM DB8 Hydraulic Disc |
| Rims | MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29" |
|---|---|
| Spokes | Black stainless |
| Front Hub | Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 32 spoke holes, 6 bolt |
| Rear Hub | Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 32 spoke holes, 6 bolt |
| Tires | Front: Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra, Rear: Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra |
| Disc Rotors | SRAM CenterLine, 200mm |
| Motor | Shimano EP801, 85Nm |
|---|---|
| Battery | Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable |
| Display | Shimano SC-EN600 |
| Charger | Trendpower EU Smart Charger, 4A |
| Lights | Lezyne Hecto StVZO E350+ Reverse / Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier, reverse MERIDA Custom Mount |
|---|---|
| Fenders | EOF-204 |
| Racks | Massload MA-013 |
| Stand | Atranvelo ED-100-PC |
First added August 17
Last updated June 7
