Compare: 2025 Merida eONE-FORTY 675 EQ

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	eONE-FORTY 675 EQ2025 Merida	Recommended

MSRP	($7,245)
Where to Buy	— $1 At
Category	Trail, E-Bike
Weight	62.2 lbs
	6.0
Frame	Aluminum
	Suntour AION
	RockShox Deluxe Select
Wheels	Aluminum
Wheel Size	29″
	SRAM DB8 Hydraulic Disc
	Shimano 600W 85Nm mid-drive
	750Wh
	NX Eagle
Drivetrain	1 × 12
Suspension	Full
Front Travel	150mm
Rear Travel	133mm
Brand Site	merida-bikes.com

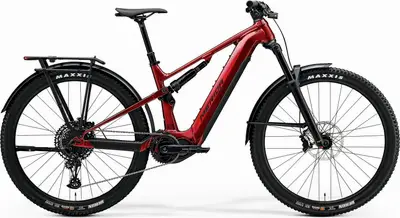

Summary	The Merida eONE-FORTY 675 EQ is a 29″ aluminum frame full suspension trail e-bike with high-end components.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

eONE-FORTY 675 EQ

Other Trail bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

eONE-FORTY 675 EQ

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	eONE-FORTY 675 EQ2025 Merida

Frame	eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, 750 Wh BB Standard: BSA, 73mm, Threaded
Fork	SR Suntour Aion 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize Travel: 150mm Spring Type: Air
Shock	Rock Shox Deluxe Select Travel: 133mm
Bottom Bracket	BSA, 73mm, threaded
Headset	Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Stem	MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar	MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Saddle	MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
Seatpost	MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost Type: Dropper
Pedals	VP VPE-533

Groupset

Rear Derailleur	SRAM NX Eagle
Crank	SRAM Eagle Transmission E-MTB chainring, 36 teeth
Shifters	Limotech RM10 (For SRAM MMX) / SRAM NX Eagle Single Click
Cassette	SRAM CS PG1230 EAGLE 11-50T
Chain	SRAM NX Eagle
Brakes	SRAM DB8 stealth, 4 piston Type: SRAM DB8 Hydraulic Disc

Wheels

Rims	MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
Spokes	Black stainless
Front Hub	Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 32 spoke holes, 6 bolt
Rear Hub	Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 32 spoke holes, 6 bolt
Tires	Front: Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra, Rear: Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
Disc Rotors	SRAM CenterLine, 200mm

Electric Components

Motor	Shimano EP801, 85Nm
Battery	Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
Display	Shimano SC-EN600
Charger	Trendpower EU Smart Charger, 4A

Accessories

Lights	Lezyne Hecto StVZO E350+ Reverse / Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier, reverse MERIDA Custom Mount
Fenders	EOF-204
Racks	Massload MA-013
Stand	Atranvelo ED-100-PC
