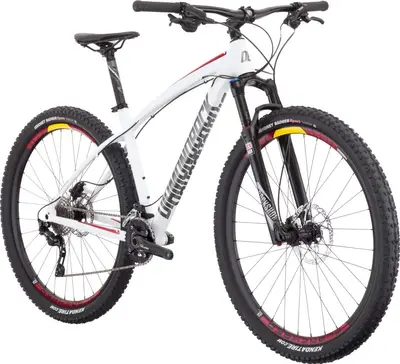

Overdrive Pro 29
A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
Frame | Aluminum |
---|---|
Suspension | Hardtail, 100mm |
Fork | RockShox Reba |
Wheels | 29″ Aluminum |
Drivetrain | 2 × 10 |
Groupset | XT, SLX |
Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Frame | Overdrive 29" Butted 6061-T6 Aluminum, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs w/ Replaceable Hanger |
---|---|

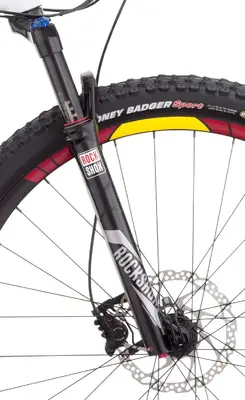

Fork | Rockshox Reba, Solo Air, 100mm Travel, 15mm Thru-axle, w/ Rebound Adjust and Lock Out Travel: 100mm Spring Type: Air |
Bottom Bracket | Shimano Outboard Bearing |
Headset | FSA NO.42, Sealed Cartridge for Tapered Headtube |
Stem | DB 3D Forged, 7° Rise, 31.8 Bar Bore |
Handlebar | Diamondback "Pro Bar", 740mm Wide, 15mm Rise, 31.8 Bar Bore |
Saddle | DB Race M-series Saddle |
Seatpost | DB Alloy Micro Adjust 30.9mm Type: Rigid |
Pedals | DB4L Alloy Platform |
Grips | DB4L 135mm Lock On |

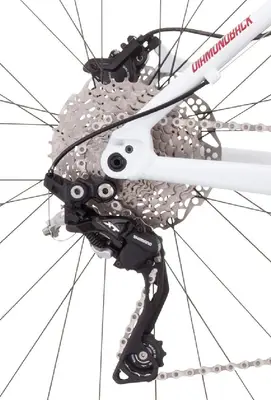

Rear Derailleur | Shimano XT M786 Shadow Plus, 10 Speed |
---|---|
Front Derailleur | Shimano SLX M677, Low Clamp, Side Swing, 34.9mm Clamp Diameter |

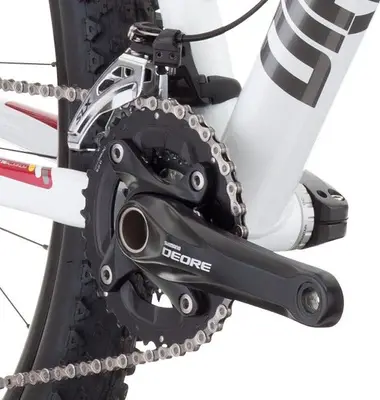

Crank | Shimano Deore M617, 36/22T |
Shifters | Shimano SLX M670, 2x10 Speed Rapidfire |
Cassette | Shimano HG50, 10 Speed Cassette, 11-36T |
Chain | KMC X10, 10 Speed |
Brakes | Shimano BR-M506 Hydraulic Disc, w/ 180mm Front /160mm Rear Center Lock Rotors Type: Hydraulic Disc |
Brake Levers | Shimano BR-M447 Hydraulic Lever w/ Reach Adjust |
Rims | Diamondback Blanchard 25, Tubeless Compatible |
---|---|
Spokes | 14g Stainless Steel |
Front Hub | 32h SL-7, 15MM Thru-Axle, Alloy w/ Center Lock Disc Mount, |
Rear Hub | 32h SL-7,142x12mm Thru-Axle, Alloy Cassette w/ Center Lock Disc mount |
Tires | Kenda Honey Badger 29x2.2" |
