2026 Canyon

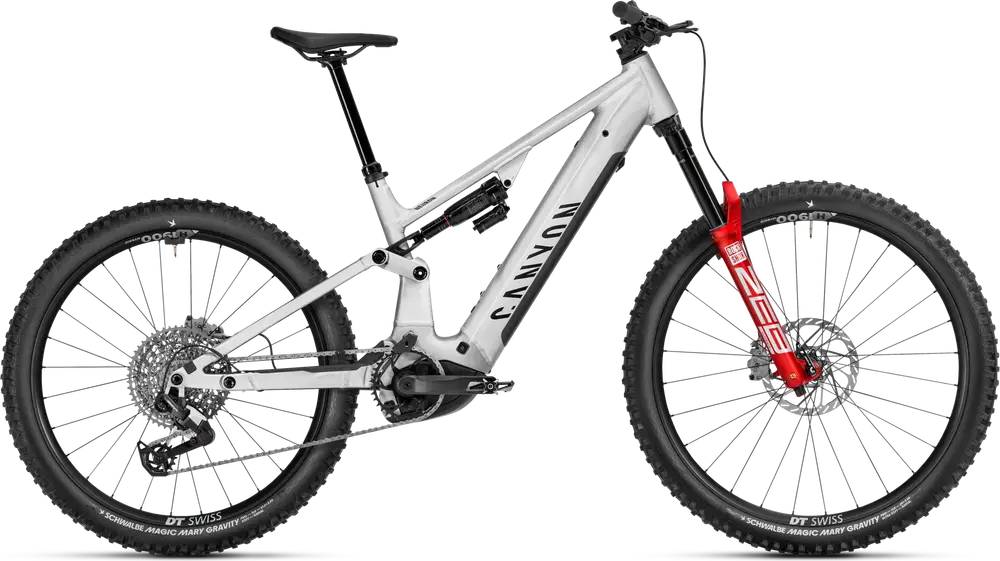

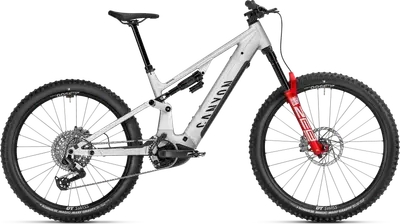

Neuron:ON AL CLLCTV

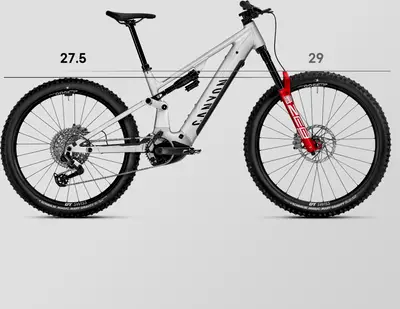

A 27.5″ / 29″ aluminum frame full suspension trail e-bike with ultra high-end components.

Manufacturer Price

€4,999($5,813)€5,499
Weight57.1 lbs
FrameAluminum
SuspensionFull, 145 / 160mm
ForkRockShox ZEB Ultimate
ShockRockShox Super Deluxe Select
Wheels27.5″ / 29″ Aluminum
Drivetrain1 × 12
GroupsetEagle 90 Transmission
MotorBosch 600W 85Nm mid-drive
BatteryBosch 800Wh
BrakesSRAM Maven Bronze Hydraulic Disc
SeatpostDropper
View on canyon.comLearn about Canyon
Similar Bikes
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Neuron:ON AL CLLCTV
Other Trail bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

< 5'6"

SM

5'4" – 5'10"

MD

5'8" – 6'1"

LG

5'11" – 6'4"

XL

6'3" +

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Reviews
BikeRadar
Canyon Neuron:ON AL 9 review: a comfortable and controlled all-rounder that needs a couple of upgrades | BikeRadar

Mar 2025 · Luke Marshall

Canyon tries to conquer the challenge of producing a cost-effective do-it-all eMTB

Highs
  • Geometry promotes stability and speed

  • Well balanced spec

  • Excellent sram s1000 eagle axs transmission shifting

  • Impressive battery range

Lows
  • Takes confident riding to unleash cornering prowess

  • Uncomfortable grips

  • No top tube controller

Read Review

E-Mountainbike Magazine
Canyon Neuron:ON AL 9 2025 On Test – Not for the Faint Hearted

Mar 2025 · Robin Ulbrich

We tested the Canyon Neuron:ON AL eMTB, which comes equipped with Bosch’s latest Gen5 CX motor and a massive 800 Wh battery – here’s what it’s capable of!

Highs
  • Excellent value for money

  • Confidence-inspiring geometry

  • Mounting points for a rear rack

Lows
  • Akward display positioning

Read Review

Pinkbike
Canyon Announces New Neuron:ON AL With Latest Bosch CX Motor

Mar 2025 · Stephane Pelletier

An e-bike built for riders looking to explore further without breaking the bank.

Highs
  • Constructed from aluminum for durability

  • Integrated battery into the downtube

  • Meets Canyon’s Category 3 testing standards

  • Sealed pivot bearings and reinforced pivot hardware

  • UDH hanger mount

  • Increased stack height for rider comfort

  • Bosch’s Performance Line CX motor with 85Nm of torque and up to 600W of peak power

  • Four customizable ride modes

  • Battery options include 600Wh and 800Wh, with a 250Wh range extender available

  • 145mm of rear travel paired with a 150mm fork

  • Shimano and SRAM 12-speed drivetrains

  • Four-piston brakes with 200mm or 203mm rotors

  • 34.9mm dropper post standard across the range

Read Review

MBR
The Neuron:ON fly CF9 is Canyon's first sub-20kg e-bike, and it kills it on flowy singletrack - MBR

Apr 2024 · Jamie Darlow

Canyon is far from a newbie when it comes to building e-bikes, the direct sales brand has arguably the best electric mountain bike out there, in the Spectral:ON CF9. What it hasn’t had until now though is a lightweight bike with a mid-powered motor, so step forward the Neuron:ONfly, a short-travel e-bike taking Canyon into the modern era. Check out our full range breakdown, prices and more details on the new bike for the full Canyon Neuron:ONfly family. Neuron:ONfly need to know Trail or adventure e-bike with the latest Bosch SX motor 140mm travel and 29in wheels front and rear (XS size gets 130mm) Four full-carbon models, from top-spec LTD to CF7 at £4,649. This CF9 model costs £6,699 Five sizes, from XS to XL, topping out at 510mm reach 19.9kg claimed weight on CF9 tested 400Wh fixed internal battery, plus optional 250Wh range extender Bosch SX boasts 55Nm torque and 600 watts peak power, if you pedal hard Canyon Neuron:On Fly – lightweight, middleweight or flyweight? The first thing to point out is that, while the Neuron:ONfly uses the new lightweight Bosch SX motor, it’s not that light for the category, at 19.9kg. There are plenty of new e-bikes that are either lighter or boast more travel, like the Whyte E-Lyte and new Mondraker Dune XR, but crucially both those bikes are significantly more money. The Dune’s frame is also claimed to be much lighter, 2,650g without motor and shock to the Neuron:ONfly’s 3,300g. Instead of focussing on a bike’s weight, the idea is more to target the feel of pedalling a regular bike, and to do that one motor stands head and shoulders above the rest in my opinion – the Bosch’s SX. It’s one of the most natural feeling motors out there and really does match the power coming from your legs, whether you’re soft pedalling or powering up a fireroad. Good though the SX is then, and I have to say it is extremely good, it does come with some drawbacks. It’s very small, but the motor is only 900g lighter than the full-power CX unit, and a big 400Wh is non-negotiable here – go SX and you have to take this big and heavy battery pack. Of course none of this is necessarily a bad thing, it’s great to see that Canyon hasn’t chased a headline weight like Scott did with the Lumen, and built a bike that’s too good for its own parts. There are no flimsy tyres (something that tripped it up with the Neuron:ON last year) XC suspension components, dinky rotors or just plain old small sizing. No, what I’m saying is that there has to be a reason to justify using a lightweight motor over a full power unit, and Canyon’s hanging its hat on ride feel. Neuron:On Fly Frame It’s only been a year since Canyon released the Neuron:ON, a full power version of the Fly here sharing the same travel and a whole lot more besides. There’s no way …Continue reading »

Highs
  • • Sleek looking lightweight bike that sneaks in under 20kg

  • • Great motor in the Bosch SX, with the best balance of power and battery

  • • Good spread of sizing, with modern geometry

  • • Aggressive pricing with models below £5,000

  • • Supportive suspension that pedals well all day

Lows
  • • Needs a 150mm fork to hold up the front end

  • • Bosch SX drones at low cadences

Read Review

off.road.cc
Canyon Neuron:ON CF 8 e-MTB review

Nov 2023

In a crowded segment, Canyon’s Neuron:ON CF 8 stakes its claim as the versatility and distance-focused trail bike. Realised through several specific geometry and component choices, as well as its suspension travel, the brand has successfully hit those aims as it can comfortably traverse all terrain in a fun and responsive manner. While Canyon has nailed the trail bike geometry, some component choices are a bit odd and negatively affect its downhill potential.

Read Review

EMTB Forums
2024 Canyon Neuron:ON CF 9 review

Oct 2023 · Knut Nes

We've ridden mid-travel bikes before that were very similar to the more common 160mm travel bikes. Comparable weight, similar geometry, same wheels. And we've wondered; why? What's the upside of going mid-travel if you get the same bike, only...

Read Review

Bikerumor
Canyon's All-New Carbon Neuron:ON CF Transforms into a Most Versatile Trail eBike

Jun 2023 · Cory Benson

Canyon’s new carbon Neuron:ON CF ebike is a more progressive, versatile all-rounder eMTB blurring the pedal-assisted lines between trail & all-mountain…

Read Review

The Gear Loop
Canyon launches the new Neuron:ON, its true adventure bike

Jun 2023

Full carbon frames, beefed up suspension and longer dropper posts all now feature

Read Review

Geometry
Specs
Build
Frame

Canyon Neuron:ON AL, Axle dimension 12x148 mm, Material Aluminium (AL), Weight 4,616 g

ColorRaw

Fork

RockShox ZEB Ultimate, Axle dimension 15x110 mm, Stanchion Diameter 38 mm, Travel 160 mm, Fork steer tube diameter 1 1/8" - 1,5", Weight 2,341 g

Travel160mm

Spring TypeAir

Shock

RockShox Super Deluxe Select, Weight 430 g

Travel145mm

Stem

Canyon:ON ST0031 Stem, Canyon E-MTB stem., Length 45 mm, Fork steer tube diameter 1 1/8", Clamping diameter 35,0 mm, Material Aluminium (AL)

Handlebar

Canyon:ON HB0056 Riser bar, Clamping diameter 35,0 mm, Rise 20 mm

Saddle

Fizik Terra Aidon X5, Gender Unisex, Weight 272 g

Seatpost

Canyon SP0081, Seatpost diameter 34,9 mm, Material Aluminium (AL), Weight 745 g

TypeDropper

Pedals

Flat Pedals

Grips

Canyon Lock-On

Groupset
Rear Derailleur

SRAM Eagle 90 Transmission, Cage length long, Weight 391 g

Crank

FSA CK-745/IS/GEN4, Number of chainrings 1

Shifters

SRAM Eagle 90, Weight 135 g

Cassette

SRAM XS-1275 Eagle Transmission, Number of sprockets 12, Range 10-52

Chain

SRAM GX Eagle Transmission

Chain Guide

Canyon GP0480-01 slim

Brakes

SRAM Maven Bronze, Number of pistons 4

TypeSRAM Maven Bronze Hydraulic Disc

Wheels
Rims

Front: DT Swiss H1900, Axle dimension 15x110 mm, Rotor mount Center Lock, Inner width 30 mm, Rim material Aluminium, Weight 1,007 g, Rear: DT Swiss H1900, Axle dimension 12x148 mm, Rotor mount Center Lock, Inner width 30 mm, Rim material Aluminium, Weight 1,161 g

Tires

Magic Marry Radial, Width 2.5", Weight 1,255 g | Magic Marry Radial, Width 2.5", Weight 1,340 g

Disc Rotors

SRAM HS2, Size 200 mm, Weight 255 g

Electric Components
Motor

Bosch Performance Line CX BDU384Y

Battery

Bosch PowerTube 800Wh, 800 Wh

Charger

Bosch 4A
