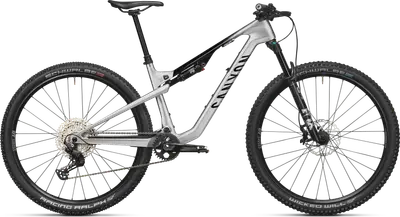

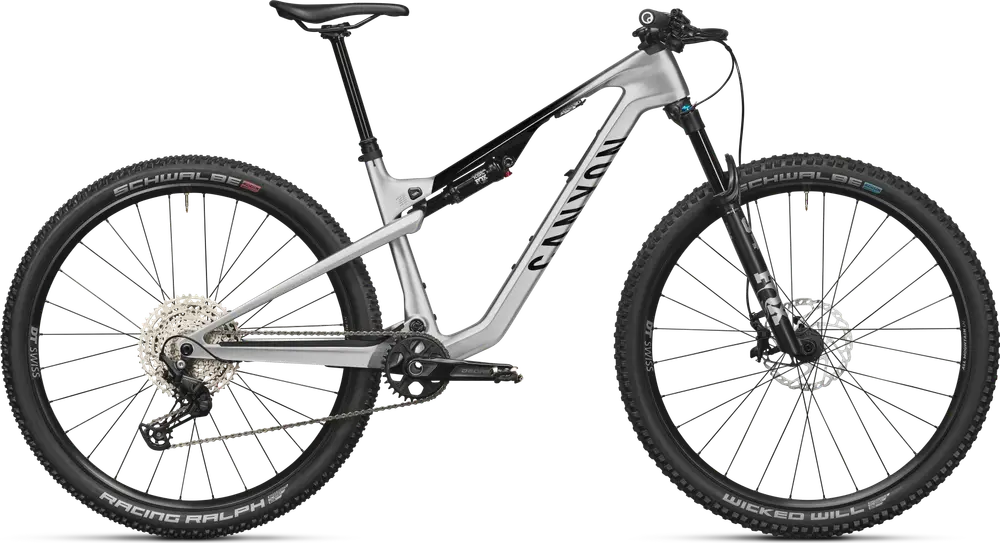

Today’s Deals2026 Canyon
Lux Trail CF 7
A 29″ carbon frame full suspension trail bike with upper mid-range components.
Manufacturer Price
€2,999($3,473)| Weight | 29.5 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 120mm front |
| Fork | Fox Performance Float 34 |
| Shock | Fox Float SL Performance Elite |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | Shimano SLX Hydraulic Disc |
< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2024 · Dario DiGiulio
The Lux is extra-efficient and suited to long days of pedaling, just as long as the terrain doesn't get too technical.
Efficient and comfortable pedal platform
Good geometry for mellow pursuits
Clever, well-integrated frame details
Poor performance in technical terrain
Size-specific rear center would be nice
Apr 2024
Canyon has updated the Lux platform and the Trail CFR pictured here utilises a revised frameset with 115mm of rear travel and design elements that make it suitable for all-day marathon rides or racing. The Lux has been a lot of fun to ride and is quite capable but it has left me more conflicted than any other bike I've recently tested with constant questions about components and prospective changes. Despite its name, Canyon has not classified the Lux as a trail bike – so where does this fit in among Canyon's line up and the best mountain bikes on the market?
Nov 2023 · Cory Benson
Canyon evolves their carbon Lux Trail downcountry bike with more capable, longer-travel overhaul, adding a top CFR-tier and internal storage…
Nov 2023
For 2024 the Canyon Lux Trail receives a brand new carbon frame that features internal storage and radically improved suspension performance.
Fantastic suspension
Efficient pedalling manners
Responsive handling
Clever storage solutions
Great value spec throughout the 6-model lineup
Not the most forgiving ride
Cockpit ergonomics could be better
Headset cable routing
Storage accessories aren't included
Oct 2023 · Rachel Bennet
Loves to climb and fast on the flat, but loses points when tracks get steep and techy – and the lack of a dropper is a real shame
Climbs like a machine
Excels on fast, smooth tracks
High spec for the money
No dropper post
Rebound dial tricky to access
Skittish on steep downhill tech
Jul 2023 · Nelson
The Lux World Cup is claimed to be the lightest in the world, with the frame weighing just 1,535 grams.
May 2023 · Jeff Barber
The Canyon Lux Trail isn't a short-travel trail bike; it's more precisely a long-travel XC mountain bike.
Lightweight and efficient pedaler
Comfortable and capable descender
Great value
Geometry is not particularly progressive
Needs a better dropper remote
Only one frame color available with the CF 7 build
| Frame | Canyon Lux Trail CF, A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3., Axle dimension 12x148 mm, Material Carbon (CF), Weight 2,060 g BB Standard: BSA, 68mm, Threaded Color: Chrome Level 1 |
|---|---|
| Fork | FOX 34 SL Performance, Axle dimension 15x110 mm, Stanchion Diameter 34 mm, Travel 120 mm, Fork steer tube diameter 1 1/8" - 1,5", Weight 1,730 g Travel: 120mm Spring Type: Air |
| Shock | FOX Float SL Performance Elite 3-Pos Remote, Weight 280 g |
| Bottom Bracket | Shimano BB-MT501, Bottom bracket standard BSA HT2 68/73, Weight 73 g |
| Stem | RaceFace Ride, Fork steer tube diameter 1 1/8", Clamping diameter 35,0 mm, Material Aluminium (AL) |
| Handlebar | RaceFace Ride Riserbar, Clamping diameter 35,0 mm, Rise 10 mm |
| Saddle | Ergon SM10 Sport, Gender Male, Weight 305 g |
| Seatpost | Canyon SP0091, Seatpost diameter 31,6 mm, Material Aluminium (AL), Weight 495 g Type: Rigid |
| Pedals | None included |
| Grips | Ergon GXR |
| Rear Derailleur | Shimano Deore M6100, 12-Speed, Cage length long, Weight 356 g |
|---|---|
| Crank | Shimano Deore M6120, Number of chainrings 1 |
| Shifters | Shimano Deore M6100, 12-Speed, Weight 136 g |
| Cassette | Shimano Deore M6100, Number of sprockets 12, Range 10-51 |
| Chain | Shimano Deore M6100 |
| Brakes | Shimano SLX BR-M7110, Number of pistons 2 | Shimano SLX Brakes, Number of pistons 4 Type: Shimano SLX Hydraulic Disc |
| Rims | Front: DT Swiss AM LN 370, Axle dimension 15x110 mm, Rotor mount IS 6-bolt, Inner width 30 mm, Rim material Aluminium, Weight 1,046 g, Rear: DT Swiss AM LN 370, Axle dimension 12x148 mm, Rotor mount IS 6-bolt, Inner width 30 mm, Rim material Aluminium, Weight 1,165 g |
|---|---|
| Tires | Schwalbe Racing Ralph SG TLE EVO 2.35", Width 2.35", Weight 750 g | Schwalbe Wicked Will SR TLE EVO 2.4", Width 2.4", Weight 818 g |
| Disc Rotors | Shimano RT66 160, Size 160 mm, Weight 110 g | Shimano RT66 180, Size 180 mm, Weight 140 g |
