Today’s Deals2025 Canyon

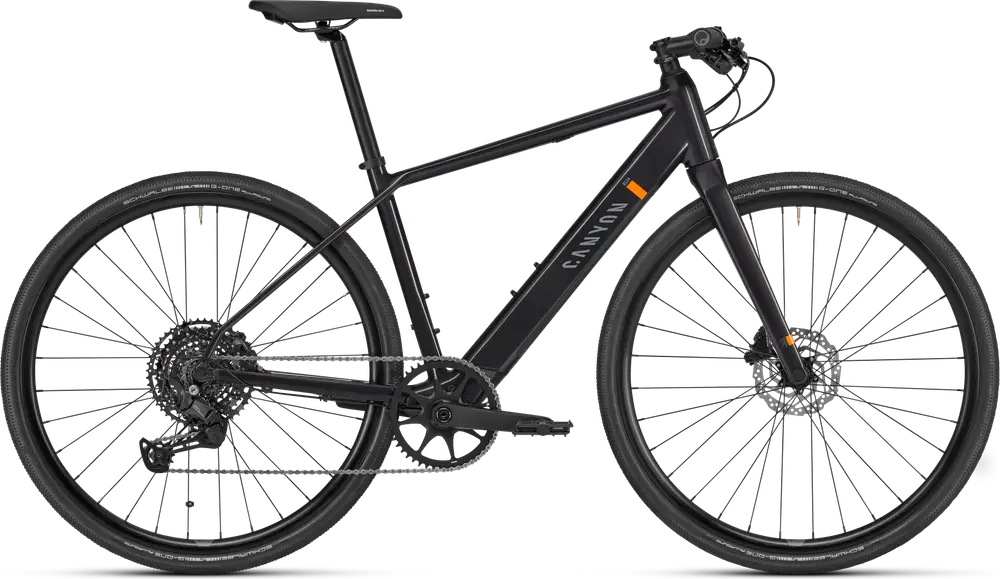

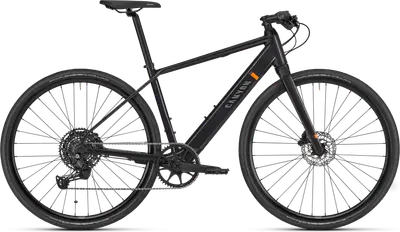

Roadlite:ONfly 5
A 650b / 700c aluminum frame fitness e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€2,299($2,675)| Weight | 35.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 650b / 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | CUES |
| Motor | Fazua 450W 60Nm mid-drive |
| Battery | Fazua 430Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Roadlite:ONfly model range
View Comparison< 5'8"
5'6" – 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Canyon Roadlite:ON, Robust alunimium e-hybrid frame combining a minimalist design with smooth e-bike power., Axle dimension 12x142 mm, Tyre clearance 40 mm, Material Aluminium (AL), Weight 2,100 g Tire Clearance: 40c Color: Stealth |
|---|---|
| Fork | Canyon FK0074 CF DISC, Lightweight carbon fork with comfortable, vibration-damping design., Axle dimension 15X100 mm, Fork steer tube diameter 1 1/8", Tyre clearance 40 mm, Material Carbon (CF), Weight 550 g |
| Stem | Iridium Stem, Fork steer tube diameter 1 1/8", Material Aluminium (AL) |
| Handlebar | Iridium Flatbar, Clamping diameter 31,8 mm |
| Saddle | SR Royal Essenza, Weight 288 g |
| Seatpost | SP HL C255 400 30,9, Seatpost diameter 30,9 mm, Material Aluminium (AL), Weight 280 g Type: Rigid |
| Pedals | Femin FP-803 |
| Grips | Ergon GA3 mini-wing |
| Rear Derailleur | Shimano CUES U8000, Weight 305 g |
|---|---|
| Crank | Samox EC37F, Number of chainrings 1 |
| Shifters | Shimano Cues U6000, Weight 140 g |
| Cassette | Shimano Cues LG400, Number of sprockets 11, Range 11-50 |
| Chain | KMC X11 |
| Brakes | Shimano MT200/UR300 front brake, Number of pistons 2 | Shimano MT200/UR300 rear brake, Number of pistons 2 Type: Shimano Hydraulic Disc |
| Rims | Front: Alex Rims GX26P | Shimano TC500 front hub, Axle dimension 15X100 mm, Rotor mount Center Lock, Rim height 26 mm, Inner width 25 mm, Rim material Aluminium, Weight 940 g, Rear: Alexrims GX26P | Shimano RS470, Axle dimension 12x142 mm, Rotor mount Center Lock, Rim height 26 mm, Inner width 25 mm, Rim material Aluminium, Weight 1,200 g |
|---|---|
| Tires | Schwalbe G-One Allround Performance Race Guard, Width 1.5", Weight 490 g |

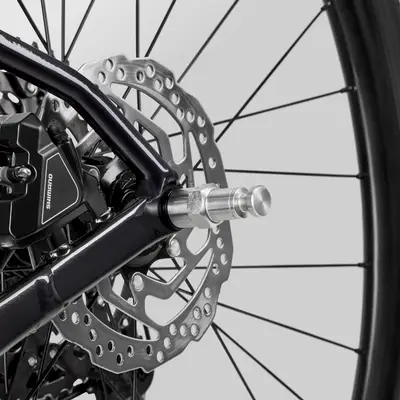

| Disc Rotors | Shimano RT10, Size 160 mm, Weight 178 g |
| Motor | Fazua Ride 60 Drive Unit |
|---|---|
| Battery | Fazua Energy 430 Wh, 430 Wh |
