Today’s Deals2025 Canyon

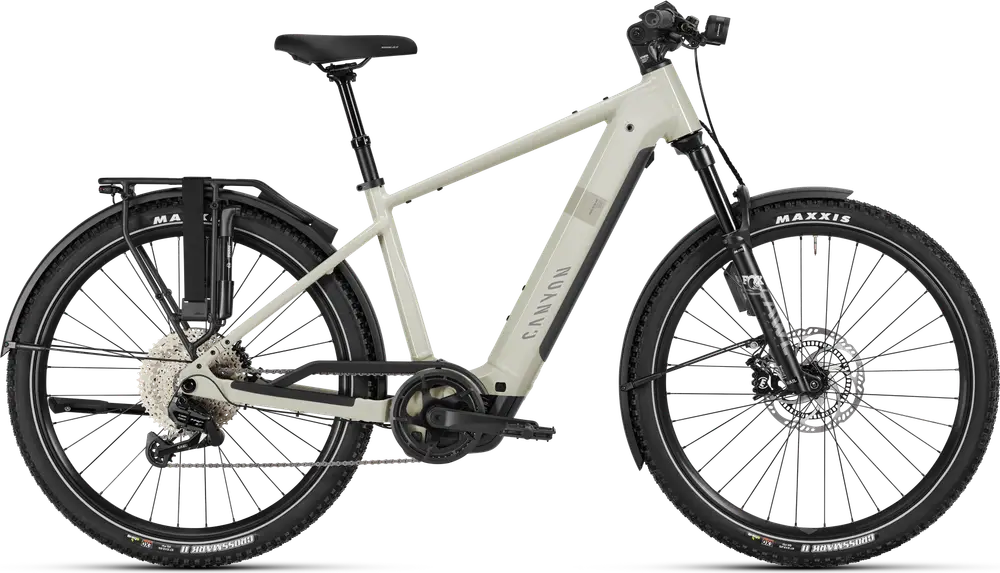

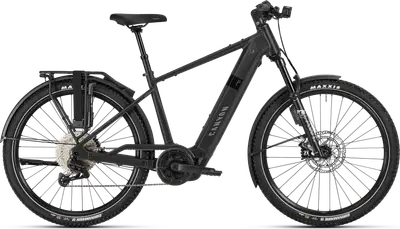

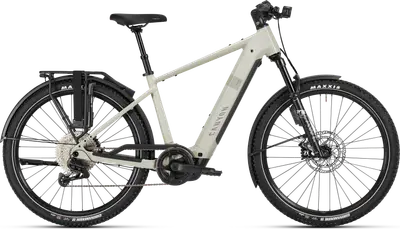

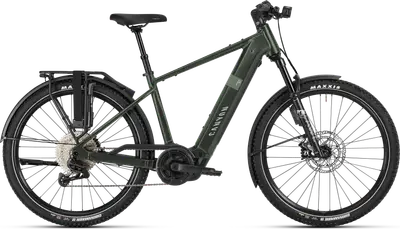

Pathlite:ON 9 SUV
A 650b aluminum frame fitness e-bike with high-end components and magura hydraulic disc brakes.
Compare the full range
Manufacturer Price
€4,999($5,816)| Weight | 60.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | Fox AWL |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Tektro, FSA |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 600Wh |
| Brakes | Magura Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Pathlite:ON model range
View Comparison< 6'0"
5'10" – 6'4"
6'2" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2023 · Warren Rossiter
Fully loaded go-anywhere urban tourer
Superbly equipped
Brilliant power train and controlled motor performance
Couch like comfortable ride
Security and safety built in
All of the enhancements don t come cheap
May 2023
Verdict: Highly capable e-bike in all situations with the added benefit of the latest Bosch Smart System developments
Mar 2023 · Cory Benson
Canyon revamps its hybrid ebike line for more versatility & more power with all-new carbon Roadlite:ON, adventure Pathlite:ON & more...
Mar 2023
Canyon has created what it believes to be its "greatest" electric touring hybrid bike
Aug 2022 · Mschneider
With the Pathlite:ON 8 SUV ST, Canyon offer a fully equipped off-road step-through ebike with a powerful Bosch Performance Line CX motor and 750 Wh battery. In this review we’ll tell you whether it’s only suitable for urban cowboys or if it’s also an option beyond the city limits. For an overview of the test […]
Good allround qualities
Excellent comfort
Harmonious spec and equipment
Integrated cockpit not adaptable
| Frame | Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension 12x148 mm, Material Aluminium (AL), Weight 1,620 g Colors: Stealth Black; Chalk; Tundra Green |
|---|---|

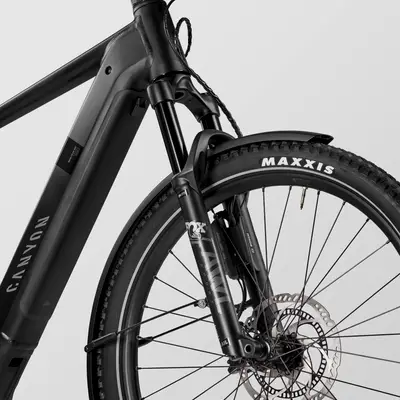

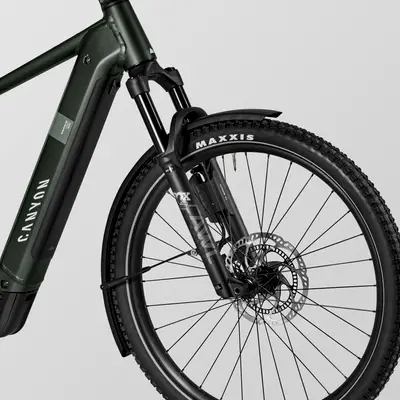

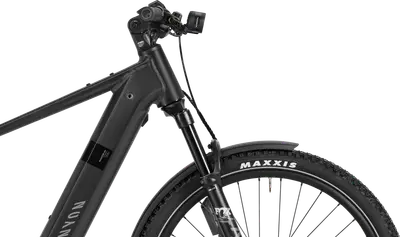

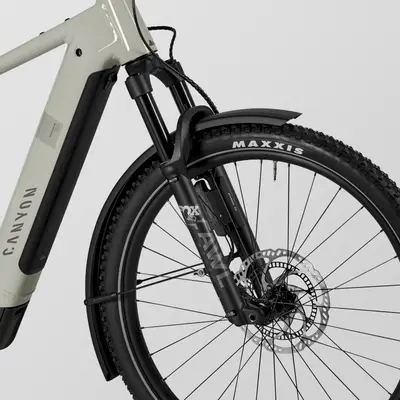

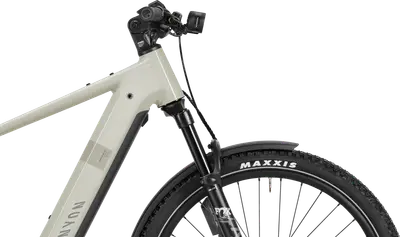

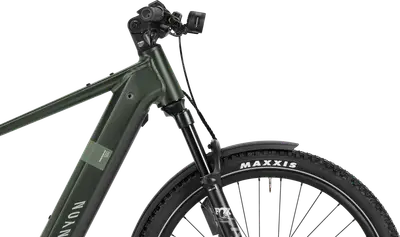

| Fork | FOX Float 34 AWL 27,5", Axle dimension 15x110 mm, Stanchion Diameter 34 mm, Travel 120 mm, Fork steer tube diameter 1 1/8", Offset 44 mm, Weight 2,300 g Travel: 120mm Spring Type: Air |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter 1 1/8", Clamping diameter 31,8 mm |
| Handlebar | Canyon HB0051, Clamping diameter 31,8 mm |
| Saddle | Selle Royal Essenza+ Moderate Wide, Weight 373 g |
| Seatpost | Canyon SP0062 Supension Dropper Post, Seatpost diameter 30,9 mm, Material Aluminium (AL), Weight 518 g Type: Dropper |
| Pedals | Flat Pedals |
| Grips | Ergon GA3 |

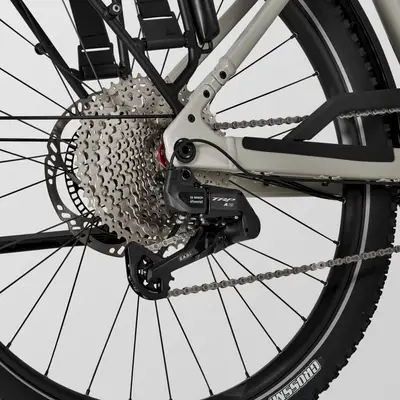

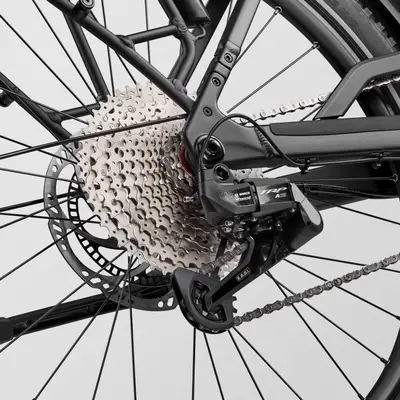

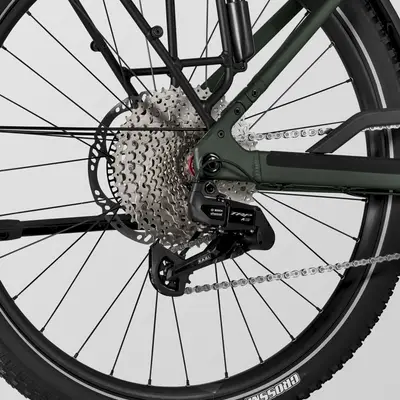

| Rear Derailleur | Tektro M8000E 12s for Bosch, Weight 348 g |
|---|---|
| Crank | FSA CK 220, Number of chainrings 1 |
| Shifters | Tektro 8000E 12s for Bosch, Weight 45 g |
| Cassette | SunRace CSMZ800 12s 11-51T, Number of sprockets 12, Range 11-51 |
| Chain | Shimano Deore M6100 |

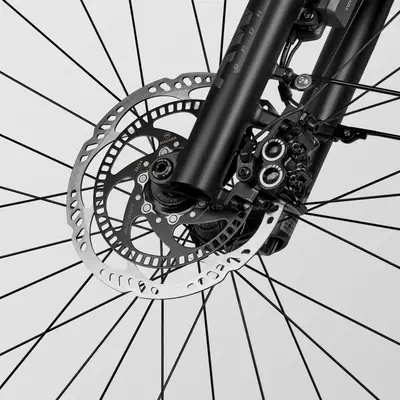

| Brakes | Magura MT C ABS front brake, Number of pistons 4 | Magura MT C ABS rear brake, Number of pistons 4 Type: Magura Hydraulic Disc |
| Rims | Front: AlexRims MD25 with Shimano MT400 front hub, Rotor mount Center Lock, Rim height 19 mm, Inner width 25 mm, Rim material Aluminium, Weight 900 g, Rear: AlexRims MD25 with Shimano TC500 rear hub, Axle dimension 12x148 mm, Rotor mount Center Lock, Rim height 19 mm, Inner width 25 mm, Rim material Aluminium, Weight 1,240 g |
|---|---|
| Tires | Maxxis Crossmark II Reflexstrip Clincher, Width 2,25", Weight 750 g |
| Disc Rotors | Magura MDR-C, Size 203 mm, Weight 222 g |
| Motor | Bosch Performance Line CX BDU384Y |
|---|---|
| Battery | Bosch PowerTube 600Wh | Bosch PowerTube 800Wh, 600 Wh / 800 Wh |
| Display | Bosch Purion 200 Display BRC3800 |
| Charger | Bosch 4A |
| Lights | Reflector Set | Supernova M99 Mini Pro 2 | Sate-lite M15 Rear Brake Light with brake signal function |
|---|---|
| Racks | Canyon Rack with MIK HD and Ortlieb QL 3.1 system |
