Today’s Deals2025 Canyon

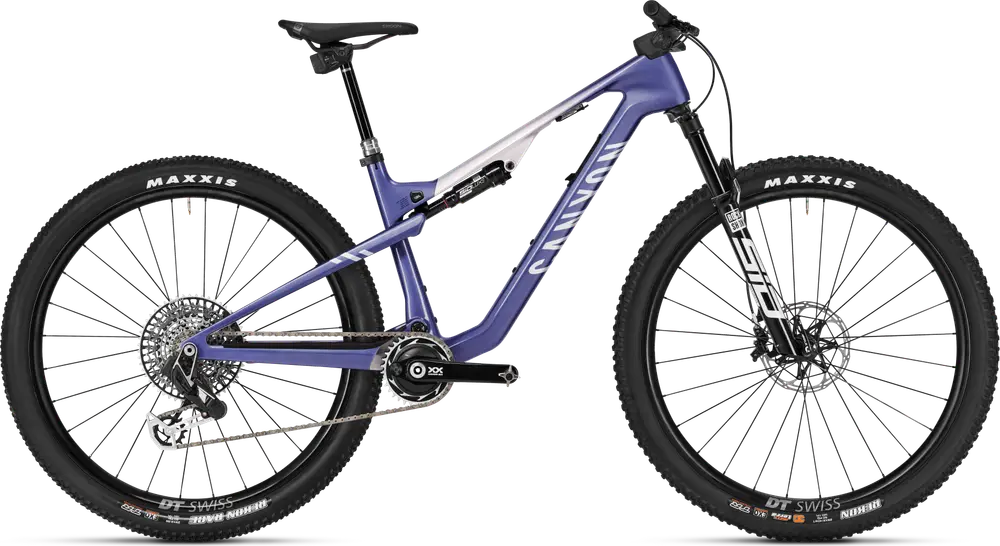

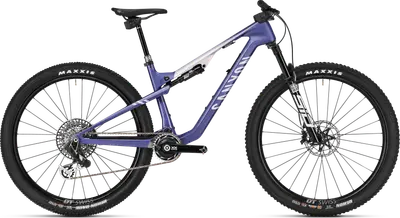

Lux Trail CFR LTD
A 29″ carbon frame full suspension crosscountry bike with ultra high-end components.
Compare the full range
Manufacturer Price
€7,999($9,167)| Weight | 25.7 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 115 / 120mm |
| Fork | RockShox SID Ultimate |
| Shock | RockShox SIDLuxe Ultimate |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 Electronic |
| Groupset | XX Eagle Transmission, Eagle AXS |
| Brakes | SRAM Level Ultimate Stealth Hydraulic Disc |
| Seatpost | Dropper |
< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2024 · Dario DiGiulio
The Lux is extra-efficient and suited to long days of pedaling, just as long as the terrain doesn't get too technical.
Efficient and comfortable pedal platform
Good geometry for mellow pursuits
Clever, well-integrated frame details
Poor performance in technical terrain
Size-specific rear center would be nice
Apr 2024
Canyon has updated the Lux platform and the Trail CFR pictured here utilises a revised frameset with 115mm of rear travel and design elements that make it suitable for all-day marathon rides or racing. The Lux has been a lot of fun to ride and is quite capable but it has left me more conflicted than any other bike I've recently tested with constant questions about components and prospective changes. Despite its name, Canyon has not classified the Lux as a trail bike – so where does this fit in among Canyon's line up and the best mountain bikes on the market?
Mar 2024 · Cory Benson
Canyon-Sidi’s custom Lux World Cup CFR Untamed XC race bike for the Cape Epic is available to you too, in striking springbok antelope paint…
Nov 2023

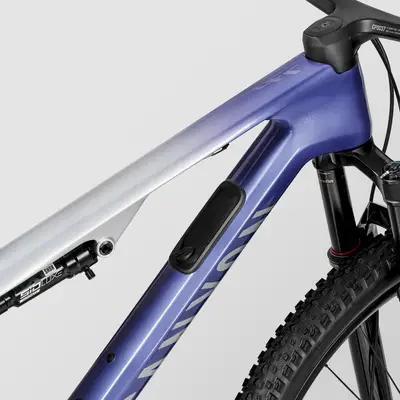

For 2024 the Canyon Lux Trail receives a brand new carbon frame that features internal storage and radically improved suspension performance.
Fantastic suspension
Efficient pedalling manners
Responsive handling
Clever storage solutions
Great value spec throughout the 6-model lineup
Not the most forgiving ride
Cockpit ergonomics could be better
Headset cable routing
Storage accessories aren't included
Oct 2023 · Rachel Bennet
Loves to climb and fast on the flat, but loses points when tracks get steep and techy – and the lack of a dropper is a real shame
Climbs like a machine
Excels on fast, smooth tracks
High spec for the money
No dropper post
Rebound dial tricky to access
Skittish on steep downhill tech
Jul 2023 · Nelson
The Lux World Cup is claimed to be the lightest in the world, with the frame weighing just 1,535 grams.
May 2023 · Jeff Barber
The Canyon Lux Trail isn't a short-travel trail bike; it's more precisely a long-travel XC mountain bike.
Lightweight and efficient pedaler
Comfortable and capable descender
Great value
Geometry is not particularly progressive
Needs a better dropper remote
Only one frame color available with the CF 7 build
| Frame | Canyon Lux CFR Trail, Axle dimension 12x148 mm, Material Carbon (CFR), Weight 1,620 g BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Color: Lightning Mauve |
|---|---|
| Fork | Rock Shox SID Ultimate 3-Position Remote, Axle dimension 15x110 mm, Travel 120 mm, Fork steer tube diameter 1 1/8" - 1,5", Weight 1,480 g Travel: 120mm |
| Shock | Rock Shox SIDLuxe Ultimate Remote Travel: 115mm |
| Bottom Bracket | SRAM DUB BSA, Bottom bracket standard BSA 73, Weight 78 g |
| Saddle | Ergon SM10 Pro, Gender Male, Weight 235 g |
| Seatpost | Rock Shox Reverb AXS, Seatpost diameter 31,6 mm, Material Aluminium (AL), Weight 710 g Type: Dropper |
| Pedals | None included |
| Rear Derailleur | SRAM XX Eagle AXS Transmission, Weight 450 g |
|---|---|
| Crank | SRAM XX SL Eagle DUB, Number of chainrings 1 |
| Shifters | SRAM AXS Pod Ultimate, Weight 68 g | SRAM AXS POD Ultimate, Weight 71 g |
| Cassette | SRAM XX Eagle Transmission 10-52, Number of sprockets 12 |
| Chain | SRAM XX T-Type | SRAM PowerLock |
| Brakes | SRAM Level Ultimate Stealth, Number of pistons 2 | SRAM Level Ultimate Stealth 4-Piston, Number of pistons 4 Type: SRAM Level Ultimate Stealth Hydraulic Disc |
| Rims | Front: DT Swiss XRC1200, Axle dimension 15x110 mm, Rotor mount Center Lock, Inner width 30 mm, Rim material Carbon, Weight 684 g, Rear: DT Swiss XRC1200, Axle dimension 12x148 mm, Rotor mount Center Lock, Inner width 30 mm, Rim material Carbon, Weight 791 g |
|---|---|
| Tires | Maxxis Rekon 3C Exo 2.4, Width 2.4", Weight 500 g | Maxxis Rekon Race Dual Exo 2.35, Width 2.35", Weight 1,028 g |
| Disc Rotors | SRAM Centerline, 160mm, Size 160 mm, Weight 117 g | SRAM Centerline X Rounded Edges, Size 180 mm, Weight 138 g |
