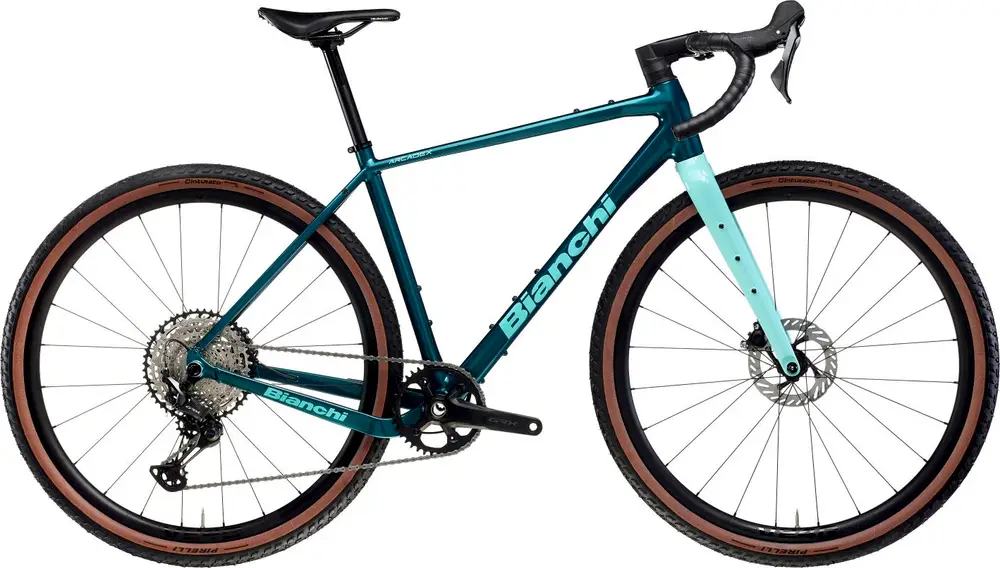

Today’s Deals2026 Bianchi
Arcadex AL
An aluminum frame gravel bike with upper mid-range components and shimano grx 400 hydraulic disc brakes.
Compare the full range
Manufacturer Price
€1,990($2,281)| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 8 |
| Groupset | GRX 800, GRX 600 |
| Brakes | Shimano GRX 400 Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
Oct 2025 · Jack Evans
Bianchi has launched the Arcadex AL, a 'premium aluminium' gravel bike seeking to closely replicate the look and weight of
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
| Frame | Bianchi Arcadex AL, aluminium, hydroformed, tubes, tire clearance 50 mm, T47 Bottom, bracket, rack and fender compatibility sizes XSSM-, MD-LG-XL BB Standard: T47, 86mm, Threaded Tire Clearance: 50c Colors: U9 – Turquoise / Ck16; Ub – Light Green / Forest Green; Up – Burgundy / Coral Red |
|---|---|
| Fork | Bianchi Arcadex, Carbon, flat mount disc frake, thru axle 12×100 mm |
| Bottom Bracket | Token T47, 24 mm axle, 86.5 mm width |
| Headset | Acros for internal cable routing |
| Stem | Velomann AL6061, rise -7° Size: 70 mm (XS); 80, mm (SM); 90 mm (MD); 100 mm (LG); 110 mm, (XL) |
| Handlebar | Velomann Gravel, Aluminium, diameter 31.8, mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440, mm (XL) |
| Saddle | Selle Royal SRX Open |
| Seatpost | Velomann Aluminium, 27,2 mm, Seatback 0 mm, length: 300 mm (XS); 350 mm (SM-LG); 400 mm, (XL) Type: Rigid |
| Grips | Bianchi Hexagon tape, 2.5 mm thickness, black |
| Rear Derailleur | Shimano GRX, RD-RX822, 12sp |
|---|---|
| Crank | Shimano GRX, FC-RX610, 40T Crank length: 165, mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL) |
| Shifters | Shimano GRX, shifter lever ST-RX610, caliper BRRX400 |
| Cassette | Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-, 18-21-24-28-33-39-45-51T |
| Chain | Shimano 105, CN-M7100 |
| Brakes | Shimano BR-RX410 Hydraulic disc brake. Brake lever included in the shifter. Type: Shimano GRX 400 Hydraulic Disc |
| Rims | Velomann V22G, Rim: Aluminium, 622x24c, 24h |
|---|---|
| Tires | Pirelli Cinturato Tanwall, 700×45 |
| Disc Rotors | Shimano RT-CL700 Center Lock, 160 mm (front&Rear) |
First added June 11
Last updated June 20
