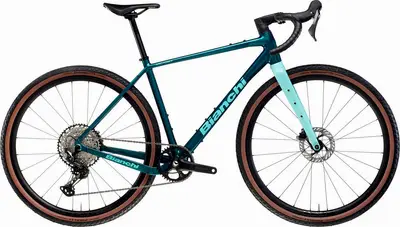

    Arcadex AL2026 Bianchi
    Recommended
    MSRP
    ($2,269)
    Where to Buy
    $2,350

    At Jenson USA

    Category
    		Gravel
    4.0
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		50c
    		Shimano GRX 400 Hydraulic Disc
    		GRX 800, GRX 600
    Drivetrain
    		1 × 8
    Brand Site

    bianchi.com

    Summary
    		The Bianchi Arcadex AL is an aluminum frame gravel bike with upper mid-range components and shimano grx 400 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Arcadex AL
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    19 mph

    Arcadex AL

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Arcadex AL2026 Bianchi
    Frame

    Bianchi Arcadex AL, aluminium, hydroformed, tubes, tire clearance 50 mm, T47 Bottom, bracket, rack and fender compatibility sizes XSSM-, MD-LG-XL

    BB Standard: T47, 86mm, Threaded

    Tire Clearance: 50c

    Colors: U9 – Turquoise / Ck16; Ub – Light Green / Forest Green; Up – Burgundy / Coral Red

    Fork

    Bianchi Arcadex, Carbon, flat mount disc frake, thru axle 12×100 mm

    Bottom Bracket

    Token T47, 24 mm axle, 86.5 mm width

    Headset

    Acros for internal cable routing

    Stem

    Velomann AL6061, rise -7° Size: 70 mm (XS); 80, mm (SM); 90 mm (MD); 100 mm (LG); 110 mm, (XL)

    Handlebar

    Velomann Gravel, Aluminium, diameter 31.8, mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440, mm (XL)

    Saddle

    Selle Royal SRX Open

    Seatpost

    Velomann Aluminium, 27,2 mm, Seatback 0 mm, length: 300 mm (XS); 350 mm (SM-LG); 400 mm, (XL)

    Type: Rigid

    Grips

    Bianchi Hexagon tape, 2.5 mm thickness, black

    Groupset
    Rear Derailleur

    Shimano GRX, RD-RX822, 12sp

    Crank

    Shimano GRX, FC-RX610, 40T Crank length: 165, mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL)

    Shifters

    Shimano GRX, shifter lever ST-RX610, caliper BRRX400

    Cassette

    Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-, 18-21-24-28-33-39-45-51T

    Chain

    Shimano 105, CN-M7100

    Brakes

    Shimano BR-RX410 Hydraulic disc brake. Brake lever included in the shifter.

    Type: Shimano GRX 400 Hydraulic Disc

    Wheels
    Rims

    Velomann V22G, Rim: Aluminium, 622x24c, 24h

    Tires

    Pirelli Cinturato Tanwall, 700×45

    Disc Rotors

    Shimano RT-CL700 Center Lock, 160 mm (front&Rear)
