Today’s Deals2026 Ari
Bonneville Team

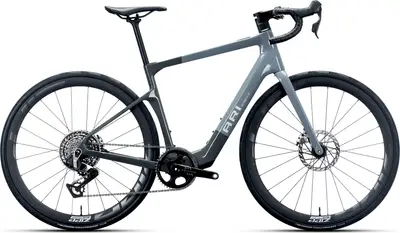

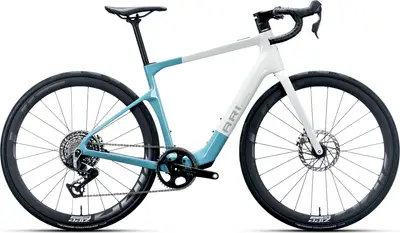

A carbon frame endurance e-bike with ultra high-end components and sram red hydraulic disc brakes.
Compare the full range
Manufacturer Price
$8,599| Weight | 3.1 lbs (frame) |
|---|---|
| Frame | Carbon |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 1 × 13 Electronic |
| Groupset | RED XPLR eTap |
| Motor | Fazua 450W 60Nm mid-drive |
| Battery | Fazua 430Wh |
| Brakes | SRAM RED Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Bonneville model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Ari Bonneville Frameset - CleanCast™ Carbon, 12x142 rear. UDH compatible. Max tire clearance 45c* Hanger Standard: UDH Tire Clearance: 45c Colors: Grey; Blue |
|---|---|
| Fork | Ari Racing Design Bonneville Monoform™ CleanCast™, tapered, 12x100 thru axle, Internal Brake Routing |
| Shock | N/A |
| Headset | FSA SRS 1.5/1.5 |
| Stem | Vision SMR (customized sizing through Ari Custom Setup) |
| Handlebar | Zipp Service Course SL-70 XPLR Carbon, 31.8 diameter, 70mm reach, 115mm drop, 11 degree flare |
| Saddle | Ergon SR Pro |
| Seatpost | Ari Carbon Dual Bolt, 27.2 Type: Rigid |
| Pedals | Available Separately |
| Rear Derailleur | SRAM RED XPLR, Direct mount, 1x13 |
|---|---|
| Front Derailleur | N/A |
| Crank | Praxis ECRANK TYPE6 ETOR Carbon |
| Shifters | SRAM RED HRD Shift-Brake Sysetm, 1x13 Hydraulic |
| Cassette | SRAM RED XG-1391 XPLR, 10-46 |
| Chain | SRAM RED Flattop |
| Brakes | SRAM RED HRD Shift-Brake Sysetm, SRAM HS2 180mm Rotors Type: SRAM RED Hydraulic Disc |
| Rims | ZIPP 303s, Tubeless Ready, Zipp Firecrest, NSW, and XPLR availalbe at Checkout |
|---|---|
| Spokes | CX-Sprint J-Bend |
| Front Hub | ZIPP 176D, 76D |
| Rear Hub | ZIPP 176D, 76D |
| Tires | Continental GP5000S 700x32c, tubeless ready, 40c tire option availalbe at checkout |
| Motor | Fazua Ride 60, 60Nm |
|---|---|
| Battery | Fazua Energy 430Wh Fixed |
First added May 2
Last updated June 13
