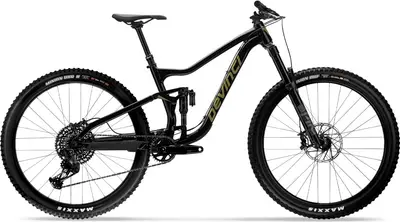

Introducing the Troy Eagle 90 LTD

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals

Overview
Compare
Geometry

Released March 27

Photo Credit: Devinci

Overview

Builds

Price Range

$3,199–$5,699

Wheels

29″, 29″ / 27.5″

Suspension

Full, 150 / 160mm

Frame Material

Aluminum, Carbon

View on devinci.com Learn about Devinci

The everyday crusher of all trails. Troy is the most advanced aluminum frame yet. But don’t let its handsmooth welds, streamlined profile and internal routing fool you. More than ever, Troy is built to shred. It has an updated geometry with size-specific chainstay lengths and comes stock with mixed wheels. It has more travel (150mm), so you’ll be looking for challenges instead of excuses. And its new ‘shed’ storage compartment in the downtube lets you pack all you need, without the need for a pack

The highs and lows of this model family

Compare the Troy Range

	Deore 12s	NX 12S	GX 12S FOX	GX 12S	Eagle 90 12s LTD	ST GX AXS 12s	Carbon\|Alu GX 12S	GX AXS 12s	Carbon GX 12S
MSRP	$3,199	$3,779	$4,599	$4,629	$5,499	$5,499		$5,699
Spec Level
Weight	38.5 lbs				36.5 lbs	34.0 lbs		35.5 lbs
Frame	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Carbon	Aluminum	Carbon
Fork	Fox Performance Float 36	RockShox Revelation RC	RockShox Lyrik Select+	RockShox Lyrik Select+	RockShox ZEB Select+	RockShox Pike Ultimate	Fox Performance Float 36	RockShox Lyrik Ultimate	Fox Performance Float 36
Wheel Size	29″	29″	29″	29″	29″ / 27.5″	29″	29″	29″ / 27.5″	29″
Brakes	SRAM G2 R Hydraulic Disc	SRAM Guide T Hydraulic Disc	SRAM G2 RS Hydraulic Disc	SRAM G2 RS Hydraulic Disc	SRAM Hydraulic Disc	SRAM Level Hydraulic Disc	SRAM Code R Hydraulic Disc	SRAM Maven Silver Hydraulic Disc	SRAM Code R Hydraulic Disc
Groupset	Deore	X1, NX Eagle	GX Eagle	GX Eagle	Eagle 90 Transmission	Eagle AXS, GX Eagle Transmission	GX Eagle	Eagle AXS, GX Eagle Transmission	GX Eagle
Drivetrain	1 × 12	1 × 12	1 × 12	1 × 12	1 × 12	1 × 12 Electronic	1 × 12	1 × 12 Electronic	1 × 12
Travel	150mm rear, 160mm front	140mm rear, 150mm front	140mm rear, 150mm front	140mm rear, 150mm front	150mm rear, 160mm front	130mm rear, 140mm front	140mm rear, 150mm front	150mm rear, 160mm front	140mm rear, 150mm front

View In-depth Comparison →

Geometry


Wheels	29″	29″	29″	29″	29″	29″	29″	29″
Stack	606	613	615	622	624	631	633	640
Reach	449	440	469	460	488	480	508	500
Stack/Reach Ratio	1.35	1.39	1.31	1.35	1.28	1.32	1.25	1.28
Top Tube Length	567	568	593	594	630	631	655	656
Seat Tube Length	390	390	420	420	450	450	470	470
Seat Tube Angle	78.9	78.1	78.6	77.8	77.2	76.4	77.0	76.2
Head Tube Length	95	95	105	105	115	115	125	125
Head Tube Angle	64.7	64.0	64.7	64.0	64.7	64.0	64.7	64.0
BB Drop	20	31	20	31	20	31	20	31
BB Height	354	343	354	343	354	343	354	343
Front Center	773	773	797	797	822	822	846	846
Chainstay Length	432	435	432	435	442	445	442	445
Wheelbase	1,204	1,206	1,228	1,230	1,263	1,265	1,287	1,289
Rake	42	43	42	43	43	44	43	43
Trail	131	135	131	135	129	134	129	135
Standover Height	747	737	747	737	747	737	747	737
