Released October 25
Builds
1
Price
($5,415)
Wheels
29″ Aluminum
Suspension
Full / 150mm rear, 160mm front
Frame Material
Carbon

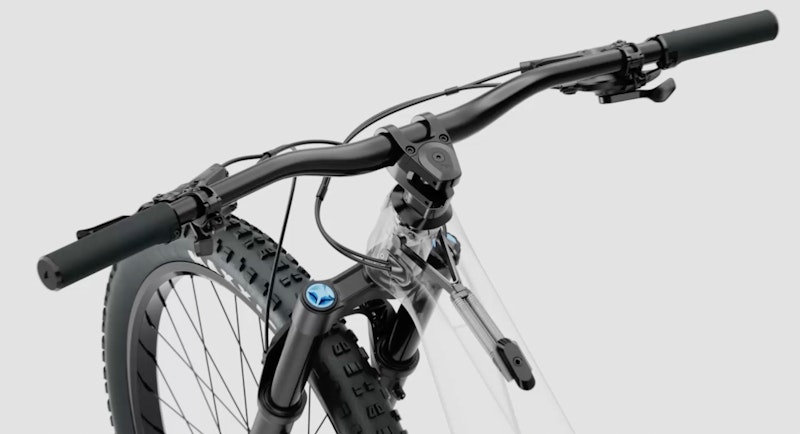

Take your riding to the next level. All new Keep It Stable (K.I.S.) technology stabilizes steering and improves control.
BACK TO THE MIDDLE
K.I.S. actively works to bring the bars back to center. This centering force filters out unwanted inputs from the trail or rider, boosting control and precision.
NO CONSTRAINTS
The uniquely shaped cam ring and pretensioned springs provide a virtually frictionless centering force that stays consistent and predictable across the full steering range.
MAINTENANCE FREE
Safely located inside the frame, the corrosion resistant custom springs, hardware and ultra-strong synthetic fiber bands ensure this system is completely maintenance free.
TRAIL TOUGH
Mishaps are part of riding (even with support from K.I.S.). To ensure the system can’t overextend in a trail bail a rotation stop keeps it safe, no matter where your bars end up.
TUNE YOUR RIDE
Dial in how much support you want from K.I.S. Choose between the most system support for maximum stability, or back it off for increased agility.
The highs and lows of this model family
| MSRP | ($5,415) |
|---|---|
| Spec Level | |
| Weight | 31.6 lbs |
| Fork | Fox Performance Elite Float 36 |
| Groupset | XT |
| Drivetrain | 1 × 12 |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more →
| Wheels | 29″ | 29″ | 29″ | 29″ |
|---|---|---|---|---|
| Stack | 610 | 619 | 628 | 637 |
| Reach | 426 | 451 | 476 | 501 |
| Stack/Reach Ratio | 1.43 | 1.37 | 1.32 | 1.27 |
| Top Tube Length | 578 | 605 | 632 | 659 |
| Seat Tube Length | 395 | 430 | 460 | 490 |
| Seat Tube Angle | 76.0 | 76.0 | 76.0 | 76.0 |
| Head Tube Length | 95 | 105 | 115 | 125 |
| Head Tube Angle | 64.0 | 64.0 | 64.0 | 64.0 |
| BB Drop | 33 | 33 | 33 | 33 |
| BB Height | 341 | 341 | 341 | 341 |
| Front Center | 762 | 791 | 820 | 850 |
| Chainstay Length | 432 | 432 | 432 | 432 |
| Wheelbase | 1,192 | 1,221 | 1,250 | 1,280 |
| Rake | 42 | 41 | 41 | 42 |
| Trail | 136 | 137 | 137 | 136 |
| Standover Height | 750 | 757 | 762 | 774 |
| Front Travel | 160 | 160 | 160 | 160 |
| Rear Travel | 150 | 150 | 150 | 150 |
🐐 Measurements listed in millimeters and degrees
