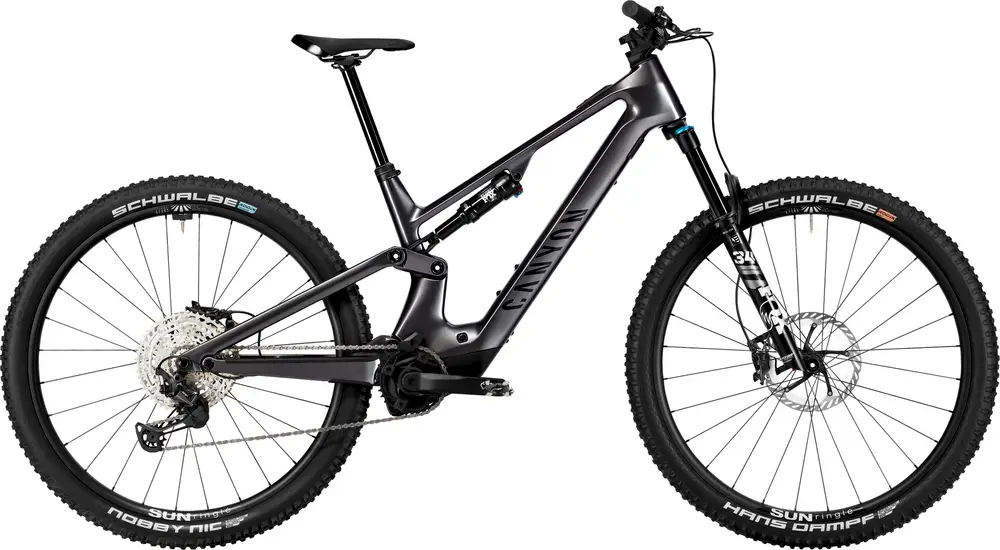

Neuron:ONfly CF 8
A 29″ carbon frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€5,599($6,152)Weight | 43.2 lbs |
---|---|
Frame | Carbon |
Suspension | Full, 140 / 140mm |
Fork | Fox Performance Float 34 |
Shock | Fox Float DPS Performance |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | XT, Deore |
Motor | Bosch 600W 55Nm mid-drive |
Battery | Bosch 400Wh |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Neuron:ONfly model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024 · Tom Law
Does Canyon’s Neuron:ONfly give a glimpse of the future of electric bikes?
Bosch s sx motor is impressive
Mostly well chosen kit
Confidence inspiring geometry
Great value compared to the competition
Motor freewheel rattles noisily
Deserves grippier rubber
Suspension needs careful tuning
Apr 2024 · Cory Benson
Canyon Neuron:ONfly is their 1st lightweight eMTB. A retuned 140mm travel 29er trail ebike, now 3kg lighter powered by a Bosch SX motor!
Apr 2024 · Mike Hunger
We tested Canyon's first light eMTB, the Neuron:ONfly, which comes equipped with a Bosch Performance Line SX motor and 400 Wh battery.
Beautiful motor integration
Agile handling on flow trails
Clean look
Tires limit the bike’s potential
Demanding handling on technical trails
Apr 2024 · Jessie-May Morgan
So, while the reach increases by 24% from XS to XL, the rear-center length remains the same, something that will give bikes at opposite ends of the range a meaningful difference in front-to-rear balance.
Frame | Canyon Neuron:ONfly CF, Lightweight, sleek, playful e-MTB with a capable, confidence-inspiring geometry. With Bosch SX power and perfectly downtube-integrated 400 Wh battery., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: Bosch, Press Fit Colors: Space Grey; Utopian Green |
---|---|
Fork | FOX 34 Performance, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm Travel: 140mm Spring Type: Air |
Shock | Fox DPS Performance, Weight: 330 g Travel: 140mm |
Bottom Bracket | Bosch, press-fit |
Stem | Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm |
Handlebar | Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm |
Saddle | Fizik Terra Alpaca X5, Weight: 230 g |
Seatpost | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 680 g Type: Dropper |
Grips | Canyon Lock-On |
Rear Derailleur | Shimano DEORE XT M8100, Cage length: long, Weight: 286 g |
---|---|
Crank | FSA CK-745 170mm |
Shifters | Shimano Deore M6100, Weight: 136 g |
Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
Chain | Shimano CN-M8100 12s |
Chain Guide | Canyon GP0480-01 Chain Guide |
Brakes | Shimano DEORE XT M8120 Type: Hydraulic Disc |
Rims | Sunringle 329 Trail Expert, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 940 g | Sunringle 329 Trail Expert, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 1.05 kg |
---|---|
Tires | Schwalbe Hans Dampf, Width: 60mm, Weight: 1.05 kg | Schwalbe Nobby Nic, Wheelsize: 29" |
Disc Rotors | Shimano RT-CL800 |
Motor | Bosch Performance Line SX |
---|---|
Battery | Bosch Compact Tube 400WH |
