    MSRP
    $4,600
    Where to Buy
    $1

    At

    Category
    Commuter, E-Bike
    Weight
    57.0 lbs
    8.1
    Frame
    Aluminum
    Fox AWL
    Wheels
    Aluminum
    Wheel Size
    650b
    Magura MT5 eSTOP Hydraulic Disc
    Bosch 350W 85Nm mid-drive
    Bosch 500Wh
    e*thirteen
    Drivetrain
    Belt Drive, Internally Geared Hub
    Suspension
    Hardtail
    Front Travel
    120mm
    Brand Site
    Summary

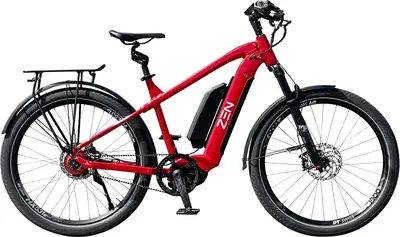

    The ZEN Samurai is a 650b aluminum frame women’s commuter e-bike with high-end components and magura mt5 estop hydraulic disc brakes.

    Ask 99 Spokes

    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Frame

    6061 Aluminium Alloy, Custom Hydroformed

    Fork

    Manitou Machete Air Suspension, 120mm Travel, Compression, Rebound Adjust, 34mm Black Anodized Stanchions, Boost 110mm Hub Spacing, 15mm Thru-Axle with Quick Release, Optional Fox AWL Ebike Specific Air Suspension Fork 34 120mm Travel

    Travel120mm

    Spring TypeAir

    Headset

    Cane Creek, Internal, Sealed Bearing, Tapered 1-1/8" to 1-1/2"

    Stem

    Custom Designed Satori, Adjustable Angle, Aluminum Alloy, 65mm or 90mm or 110mm Length, 0° to 60°, Two 10mm Spacers, 31.8mm Clamp Diameter

    Handlebar

    ZEN Custom, Aluminum Alloy, Low-Rise, 680mm Length, 20mm Rise, 15° Backsweep, 31.8mm Bore, Optional Female Specific Handlebar

    Saddle

    Ergon SF3 Gel, Optional Female Specific Ergon Saddle

    Seatpost

    Custom Designed Suspension Seatpost, Optional Kinekt Suspension Seatpost

    TypeSuspension

    Pedals

    OneUp Composite Platform with Adjustable Pins, Sealed Rebuildable Ceramic Bearings

    Grips

    Ergon GP1, Ergonomic, Locking

    Groupset
    Crank

    E*thirteen Alloy 165mm or 170mm Crank Arms, 55 Tooth CDX or CDX EXP Belt Chainring

    Shifters

    Enviolo Half-Grip Twist Shift on Right (Rider Infographic, Powered by NuVinci), Optional Kindernay 7-Speed Triggers, Optional Rohloff E14 Electronic Buttons

    Cassette

    1 Speed 1x∞ Enviolo 380 Heavy Duty Edition Mechanical Continuously Variable Transmission, 22 Tooth Belt Sprocket

    Brakes

    Magura CT4 Hydraulic Disc with 180mm Rotors, 6 Bolt Pattern, Dual-Piston Calipers, Three-Finger Levers with Adjustable Reach, Optional Magura MT5E Quad Piston Brakes

    TypeMagura MT5 eSTOP Hydraulic Disc

    Wheels
    Rims

    Double Wall, Aluminum Alloy, 25mm or 35mm Outer Width, 36 Hole

    Spokes

    Sapim, Stainless Steel, 14 Gauge, Double Butted, Black with Nipples

    Tires

    Schwalbe Super Moto-X, 27.5" x 2.4" (62-584)

    Electric Components
    Motor

    Weight: 6.3 lbs (2.85 kg), Brand: Bosch Gen 4 Performance Line Speed or CX, Type: Mid-Mounted Geared Motor, Nominal Output: 350 watts, Torque: 85 Newton meters

    Battery

    Weight: 6.3 lbs (2.85 kg), Brand: Bosch PowerTube 500 3500mAh 18650 Cells, Optional Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional 13.4Ah Bosch PowerPack 500), Watt Hours: 500 wh (Optional 1,000Wh total with Bosch PowerPack 500), Chemistry: Lithium-ion

    Display

    Bosch Intuvia, Removable,2.7" Backlit Grayscale Display, Buttons: Reset, Power, i, Lights, (Hold Reset and i for Settings Menu)
