Recommended |
---|
MSRP | ||
---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 30.9 lbs | |
Aluminum | ||
Fork | Fox Performance Elite Float 34 | |
Shock | Fox Float DPS Performance | |
Wheels | Aluminum | |
27.5″ | ||
Brakes | Hydraulic Disc | |
Groupset | XT, Race Face | |
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 130mm | |
Rear Travel | 130mm | |
Brand Site | ||

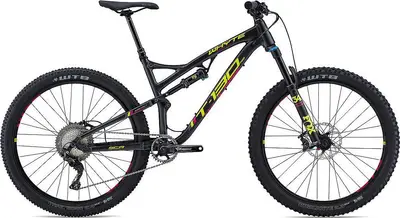

Summary | The Whyte T-130 RS is a 27.5″ aluminum frame full suspension trail bike with high-end components. |
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
---|---|---|
Fork | FOX Float Performance Elite 34, 3-position FIT4 damper, tapered steerer, black coating, 110x15mm Boost E-thru axle | |
Shock | FOX Float DPS Performance, black coating, rebound adjustment, 3-positions adjust, EVOL | |
Bottom Bracket | Race Face BSA, 73mm | |
Headset | FSA No. 57E Orbit ZS, 1.5" cartridge sealed lower bearing, 1.125" upper bearing | |
Stem | Whyte Gravity, 40mm length (S/M), 50mm length (L/XL) | |
Handlebar | Whyte Custom alloy 6061, low rise, 760mm width (30mm rise and 780mm width on XL) | |
Saddle | Whyte Custom dual density, triple panel design | |
Seatpost | RockShox Reverb Stealth, 125mm travel (XS/S), 150mm travel (M/L), 170mm travel (XL) | |
Pedals | N/A | |
Grips | Whyte lock-on V |
Rear Derailleur | Shimano XT M8000, Shadow Plus, direct mount, 11-speed | |
---|---|---|
Front Derailleur | N/A (1x-specific) | |
Crank | Race Face Turbine Cinch, 30mm alloy Boost axle | |
Shifters | Shimano XT M8000, I-spec II, 11-speed | |
Cassette | Shimano XT M8000, 11-46 tooth, 11-speed | |
Chain | Shimano HG601, 11-speed | |
Chain Guide | N/A | |
Brakes | Shimano XT M8000, 180mm front rotor, 160mm rear rotor (200mm front and 180mm rear on XL) | |
Brake Levers | Shimano XT M8000, I-spec II |
Rims | WTB STp i29, TCS System, sleeved joint, 32 hole, 29mm internal width | |
---|---|---|
Spokes | DT Swiss Champion 2.0mm, brass nipples | |
Front Hub | Front: alloy, double sealed cartridge bearing, 32 hole, 110x15mm Boost, Rear: Hope Pro 4, stainless steel bearings, 11-speed Shimano freehub, 32 hole, 148x12mm Boost | |
Rear Hub | Front: alloy, double sealed cartridge bearing, 32 hole, 110x15mm Boost, Rear: Hope Pro 4, stainless steel bearings, 11-speed Shimano freehub, 32 hole, 148x12mm Boost | |
Tires | Front: WTB Vigilante, TCS System, Light High Grip, 60tpi, folding, 27.5" x 2.3", Rear: WTB Trail Boss, TCS System, Light Fast Rolling, 60tpi, folding, 27.5" x 2.4" |
