Today’s Deals | Recommended |
|---|
MSRP | $2,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 7.7 lbs (frame) | |
Frame | ||
| Suntour XCM | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Hydraulic Disc | ||
| Bafang hub-drive | ||
| 672Wh | ||
| X5 | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 110mm | |
Brand Site | ||

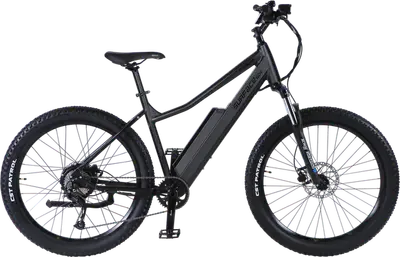

Summary | The Surface 604 Shred is a 27.5″ hardtail crosscountry e-bike with mid-range components. | |
Ask 99 Spokes
Fork | SR Suntour XCM 32 Spring Suspension, 110 mm Travel, Compression Adjust with Lockout, Preload Adjust, 32 mm Steel Stanchions, 110 mm Hub Spacing, 15 mm Thru Axle with 6 mm Hex Bolts Travel: 110mm Spring Type: Coil | |
|---|---|---|
Headset | SAMOX Tapered with Sealed Bearings, Tapered 1-1/8" to 1-1/2" | |
Stem | UNO, Aluminum Alloy, 40° Angle, 90 mm Length, 20 mm Tapered Base Spacer, One 10 mm Spacer, One 5 mm Spacer | |
Handlebar | PROMAX Aluminum Alloy, 30mm Rise With 9° Backsweep, 720mm Length | |
Saddle | Selle Royal Essenza Plus Gel, Adjustable up to 9 Degrees | |
Seatpost | Alloy, Forged Head, Dual Bolt Type: Rigid | |
Pedals | Wellgo Aluminum Alloy Platform with Fixed Pins | |
Grips | Velo, Flat Rubber, Locking, Black |
Rear Derailleur | SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings | |
|---|---|---|
Crank | Samox, Forged Alloy, Sealed Cartridge Bearings, Hollow Spindle, 170 mm Length, 38 Tooth Narrow Wide Alloy Chainring | |
Shifters | SRAM X5 Triggers on Right | |
Cassette | SRAM 12-34 Tooth | |
Brakes | Tektro E500 Hydraulic Disc with 180mm Rotors that are 2.35mm Thick, Dual-Piston Calipers with Resin Composite Pads, Three-Finger Tektro Levers with Adjustable Reach and Motor Inhibitors Type: Tektro Hydraulic Disc |
Rims | 27.5 |
|---|
Motor | Type: Hub, Output: 500, Details: Bafang RM G360.500.DC, Weight: 9 lbs (4.08 kg) | |
|---|---|---|
Battery | Watt Hours: 672 Wh, Details: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing 48 Volt, Lithium-ion, 14 Amp Hrs, (Optional 20 ah), Battery Weight: 14AH battery 3.45kg (7.5lbs) 20AH battery 4.65kg (10lbs), Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery) | |
Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port on Base |
Lights | BÜCHEL SHINY 120 LED Headlight Mounted to Stem, Pre-Wired To Connect to Rear Stop Light |
|---|
