    Passage 10 Wave2026 Scott
    Recommended
    MSRP
    ($4,889)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		49.6 lbs
    4.9
    Frame
    		Aluminum
    		Suntour NRX
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 55Nm mid-drive
    		400Wh
    		Alfine
    Drivetrain
    		Belt Drive, Internally Geared Hub
    Suspension
    		Hardtail
    Front Travel
    		75mm
    Brand Site

    scott-sports.com

    Summary

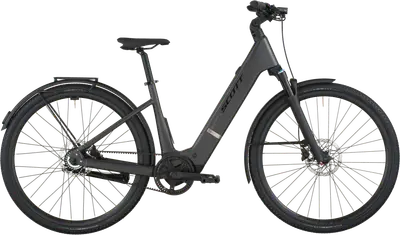

    		The Scott Passage 10 Wave is a 29″ aluminum frame hardtail crosscountry e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Passage 10 Wave
    Other Crosscountry bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Passage 10 Wave2026 Scott
    Frame

    Alloy S-L=29", 6061 Alloy custom butted tubing; Top extraction battery

    Color: Midnight Grey

    Fork

    SR Suntour NRX32-E Air LO R, Tapered, 15x100 bolt Axle, Remote Lock Out, Alloy Steerer, 75mm Travel

    Travel: 75mm

    Spring Type: Air

    Headset

    Acros, 1.5"- 1.5"; semi integ. OD 50/61mm, ID 44/55mm

    Stem

    Adjustable stem 90mm 10°-60

    Handlebar

    Alloy Handle Bar, Rise 12mm, Backsweep 15°, 680mm wide

    Saddle

    Syncros Capilano

    Seatpost

    Syncros M3.0, 31.6

    Type: Rigid

    Pedals

    Marwi SP-827

    Groupset
    Crank

    FSA CK-220 170mm

    Shifters

    Shimano Alfine SL-S503 Rapid Fire Plus

    Cassette

    Gates CDC 26T

    Chain

    Gates CDC 125T

    Brakes

    Shimano BR-MT200 Disc

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Syncros X15 Disc

    Spokes

    Black Spokes

    Front Hub

    Shimano HBTC50015B CL, 15x100mm

    Rear Hub

    Shimano Nexus 8 Speed

    Tires

    Front: Schwalbe G-One Overland 365 Performance, 700x45C, Rear: Schwalbe G-One Overland 365 Performance, 700x45C

    Disc Rotors

    Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

    Electric Components
    Motor

    Bosch Performance Line SX (BDU314Y); EU: 25kmh

    Battery

    Compact Tube 400Wh

    Display

    Bosch Purion 200

    Charger

    2A Charger

    Accessories
    Lights

    Lezyne Fusion E550SM front light; Rear Supernova TL3Z

    Racks

    Racktime Micro Rack SnapIt 2.0 8KG
