Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison
    Lumen 9002025 Scott
    Recommended
    MSRP
    $9,999
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		2.4 lbs (frame)
    Frame
    		Carbon
    		Fox
    		Fox
    Wheels
    		Carbon
    Wheel Size
    		29″
    		SRAM Hydraulic Disc
    		TQ 60Nm mid-drive
    		TQ 360Wh
    		Eagle AXS, GX Eagle Transmission
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		130mm
    Brand Site

    scott-sports.com

    Summary

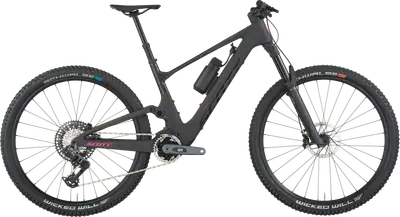

    		The Scott Lumen 900 is a 29″ carbon frame full suspension trail e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Lumen 900
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    Lumen 900

    Highest gear

    (descending)

    Geometry
    Specs
    Lumen 9002025 Scott
    Frame

    Carbon HMX; Integrated Suspension Technology; Flex Pivot, Adjustable head angle; Syncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline

    Hanger Standard: UDH

    Color: Carbon Black

    Fork

    FOX 36SL Performance Elite Air Grip SL; 3-Modes with low Speed adj. Kabolt 15x110mm axle; 44mm offset, tapered steerer, Reb. Adj. Lockout; 140mm travel

    Travel: 140mm

    Spring Type: Air

    Shock

    FOX NUDE 6T EVOL Trunnion; SCOTT custom w. travel, geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. Custom large Air volume, Reb. Adj.; Bearing Hardware, Travel 130-90-Lockout, T165X45mm

    Travel: 130mm

    Headset

    Syncros - Acros Angle adjust & Cable Routing HS System; Stainless, +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB

    Handlebar

    Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm; Syncros Performance XC lock-on grips

    Saddle

    Syncros Tofino 1.5 Regular; Titanium rails

    Seatpost

    Syncros Duncan Dropper Post 1.5S, Travel Adjust, 31.6mm; S size 140mm, M size 160mm, L size 180mm, XL size 210mm

    Type: Dropper

    Groupset
    Rear Derailleur

    SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System

    Crank

    SRAM GX Eagle, Alloy

    Shifters

    SRAM AXS Pod Rocker Controller

    Cassette

    SRAM GX Eagle XS 1275 Transmission 10-52

    Chain

    SRAM CN GX Eagle Transmission

    Chain Guide

    e*thirteen, e*spec Slider

    Brakes

    SRAM Motive Silver Stealth 4-Piston Disc

    Type: SRAM Hydraulic Disc

    Wheels
    Rims

    Syncros Silverton 1.5-30 CL; F: 15x110mm, R: 12x148mm; 30mm Tubeless ready rim 28H, XD Driver; Syncros Axle w/Removable Lever; with 6mm Allen, T30 and T25 Tools

    Tires

    Front: Schwalbe Wicked Will 29x2.4" EVO; Super Race, TLE, 67EPI, Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Race, TLE, 67EPI, Addix Speed Grip

    Disc Rotors

    SRAM HS2 CL Rotors, F&R 180mm

    Electric Components
    Motor

    TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

    Battery

    TQ Internal 360Wh + Range Extender 160Wh

    Display

    TQ HPR; Bluetooth, ANT+, Dedicated Smartphone app

    Charger

    TQ 100-240V-4A
