    Trailray 1202025 R RAYMON
    Recommended
    MSRP
    ($4,354)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    4.7
    Frame
    		Aluminum
    		Suntour X1
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Tektro Hydraulic Disc
    		Yamaha 600W 75Nm mid-drive
    		720Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		120mm
    Rear Travel
    		120mm
    Brand Site

    raymon-bicycles.com

    Summary

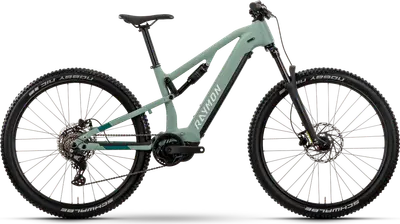

    		The R RAYMON Trailray 120 is a 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Trailray 1202025 R RAYMON
    Frame

    29", Alloy 6061, removeable battery, boost, 120 mm

    Color: Green

    Fork

    SR Suntour X1, air, 120 mm, tapered

    Travel: 120mm

    Spring Type: Air

    Shock

    SR Suntour Raidon R, air, 210x47,5 mm

    Travel: 120mm

    Stem

    Raymon 31,8, Ahead

    Handlebar

    Raymon Riser 31,8 mm, Sweep: 9 °, Rise: 20 mm

    Saddle

    Raymon

    Seatpost

    Raymon, 34,9 mm

    Type: Rigid

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M5130, Shadow Plus, 10-S

    Crank

    Raymon, Narrow Wide, 36T, CG

    Shifters

    Shimano Deore, SL-M5130, Rapidfire Plus

    Brakes

    Front: Tektro Draco, 2-piston, hydr. disc brake, Rear: Tektro Draco, 2-piston, hydr. disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    29"

    Tires

    Schwalbe Nobby Nic Perf, Addix, 62-622, 29x2.40

    Disc Rotors

    Tektro TR53, 203 mm, 6-bolt

    Electric Components
    Motor

    Yamaha PW-S2, 250/600 W, 75 Nm

    Battery

    720 Wh, 36 V

    Display

    Yamaha Display A2, LCD, Micro-USB
