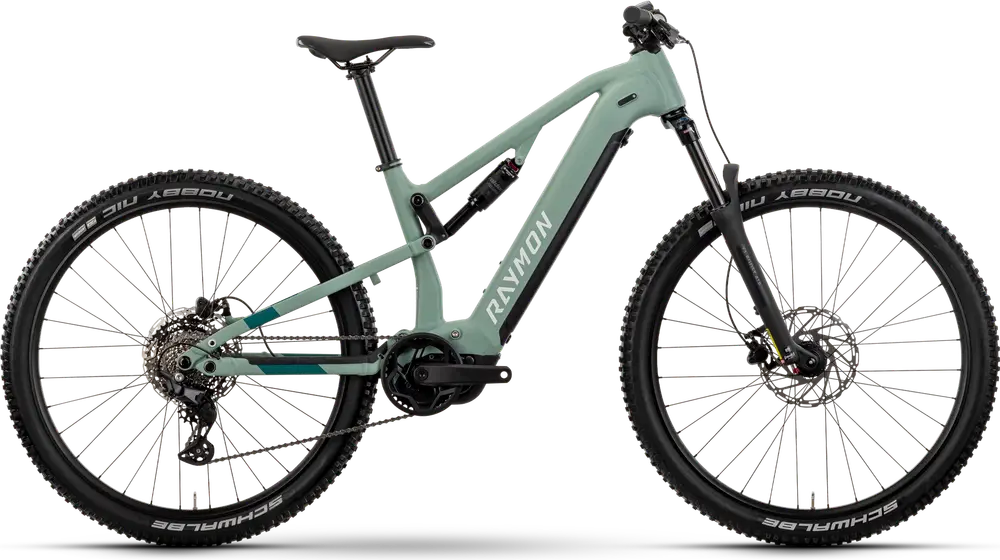

Today’s Deals2025 R RAYMON
Trailray 120
A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€3,799($4,420)| Frame | Aluminum |
|---|---|
| Suspension | Full, 120 / 120mm |
| Fork | Suntour X1 |
| Shock | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Yamaha 600W 75Nm mid-drive |
| Battery | 720Wh |
| Brakes | Tektro Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Trailray model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | 29", Alloy 6061, removeable battery, boost, 120 mm Color: Green |
|---|---|
| Fork | SR Suntour X1, air, 120 mm, tapered Travel: 120mm Spring Type: Air |
| Shock | SR Suntour Raidon R, air, 210x47,5 mm Travel: 120mm |
| Stem | Raymon 31,8, Ahead |
| Handlebar | Raymon Riser 31,8 mm, Sweep: 9 °, Rise: 20 mm |
| Saddle | Raymon |
| Seatpost | Raymon, 34,9 mm Type: Rigid |
| Rear Derailleur | Shimano Deore, RD-M5130, Shadow Plus, 10-S |
|---|---|
| Crank | Raymon, Narrow Wide, 36T, CG |
| Shifters | Shimano Deore, SL-M5130, Rapidfire Plus |
| Brakes | Front: Tektro Draco, 2-piston, hydr. disc brake, Rear: Tektro Draco, 2-piston, hydr. disc brake Type: Tektro Hydraulic Disc |
| Rims | 29" |
|---|---|
| Tires | Schwalbe Nobby Nic Perf, Addix, 62-622, 29x2.40 |
| Disc Rotors | Tektro TR53, 203 mm, 6-bolt |
| Motor | Yamaha PW-S2, 250/600 W, 75 Nm |
|---|---|
| Battery | 720 Wh, 36 V |
| Display | Yamaha Display A2, LCD, Micro-USB |
First added October 14
Last updated May 18
Not listed for 379 days
