MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Gravel | |
Frame | Aluminum | |
| Carbon | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
| Hydraulic Disc | ||
| Apex | ||
Drivetrain | 1 × 11 | |
Brand Site | ||

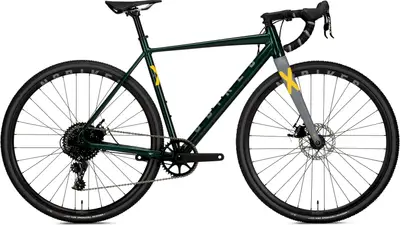

Summary | The NS XRAG is an aluminum frame gravel bike with upper mid-range components and hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | NS CX full carbon fork, 12mm dropouts, 1.5T, thru axle | |
Shock | - | |
Bottom Bracket | BSA BB 73mm | |
Headset | GW integrated tapered IS42/52, sealed bearings | |
Stem | 31.8MM / 80MM (S) / 90 MM (M, L) / 110MM (XL) | |
Handlebar | NS Buffalo 31.8, S:400mm, M,L,XL: 420mm | |
Saddle | Selle Italia Model X | |
Seatpost | Kalloy 27.2 Type: Rigid | |
Pedals | - | |
Grips | Selle Italia SMOOTAPE Gran Fondo |
Rear Derailleur | SRAM Apex 11 spd | |
|---|---|---|
Crank | Gravel Direct Mount S:170mm, M:172.5mm, L:175mm 40t | |
Shifters | SRAM Apex 11 spd | |
Cassette | SunRace CSMS7 11-42t | |
Chain | SRAM, 11 spd | |
Chain Guide | - | |
Brakes | Front: FUNN ONE Pro 5.0 Hydro-mechanic, 160mm, Rear: FUNN ONE Pro 5.0 Hydro-mechanic, 160mm Type: Hydraulic Disc |
Rims | Alex Draw 2.1P Asymmetrical, 32h, tubeless compatible | |
|---|---|---|
Spokes | Spokes w/14mm nipples | |
Front Hub | NS Bikes 100x12mm (sealed bearings) | |
Rear Hub | NS Bikes 142x12mm (sealed bearings) | |
Tires | Vittoria Terreno MIX 700x33c |
