Today’s Deals2025 NS

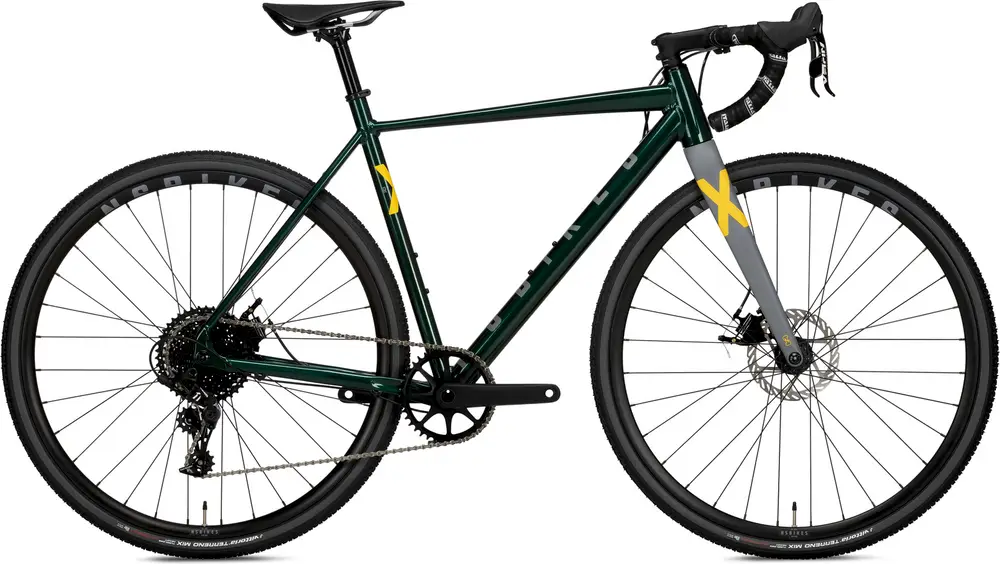

XRAG
An aluminum frame gravel bike with upper mid-range components and hydraulic disc brakes.
| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Apex |
| Brakes | Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | NS CX full carbon fork, 12mm dropouts, 1.5T, thru axle |
| Shock | - |
| Bottom Bracket | BSA BB 73mm |
| Headset | GW integrated tapered IS42/52, sealed bearings |
| Stem | 31.8MM / 80MM (S) / 90 MM (M, L) / 110MM (XL) |
| Handlebar | NS Buffalo 31.8, S:400mm, M,L,XL: 420mm |
| Saddle | Selle Italia Model X |
| Seatpost | Kalloy 27.2 Type: Rigid |
| Pedals | - |
| Grips | Selle Italia SMOOTAPE Gran Fondo |
| Rear Derailleur | SRAM Apex 11 spd |
|---|---|
| Crank | Gravel Direct Mount S:170mm, M:172.5mm, L:175mm 40t |
| Shifters | SRAM Apex 11 spd |
| Cassette | SunRace CSMS7 11-42t |
| Chain | SRAM, 11 spd |
| Chain Guide | - |
| Brakes | Front: FUNN ONE Pro 5.0 Hydro-mechanic, 160mm, Rear: FUNN ONE Pro 5.0 Hydro-mechanic, 160mm Type: Hydraulic Disc |
| Rims | Alex Draw 2.1P Asymmetrical, 32h, tubeless compatible |
|---|---|
| Spokes | Spokes w/14mm nipples |
| Front Hub | NS Bikes 100x12mm (sealed bearings) |
| Rear Hub | NS Bikes 142x12mm (sealed bearings) |
| Tires | Vittoria Terreno MIX 700x33c |
First added July 26
Last updated May 30
