MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Weight | 59.3 lbs | |
Frame | Aluminum | |
| Fox Factory Float 38 | ||
| Fox DHX2 Performance Elite | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| SRAM Maven Bronze Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 800Wh | ||
| Eagle AXS, S1000 Eagle Transmission | ||
Drivetrain | 1 × 12 Electronic | |
Suspension | Full | |
Front Travel | 180mm | |
Rear Travel | 170mm | |
Brand Site | ||

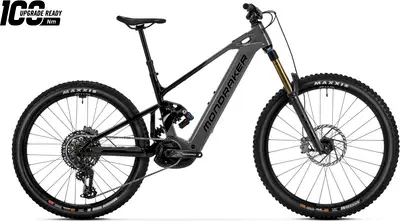

Summary | The Mondraker LEVEL RR is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers Hanger Standard: UDH | |
|---|---|---|
Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 180mm Spring Type: Air | |
Shock | Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings Travel: 170mm Spring Type: Coil | |
Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º | |
Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore | |
Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. | |
Saddle | FIZIK Terra Aidon X5 145mm | |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) Type: Dropper | |
Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Rear Derailleur | SRAM S1000 Eagle AXS T-Type, 12s | |
|---|---|---|
Crank | Race Face Aeffect ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD | |
Shifters | SRAM Eagle AXS Pod MMX, 12s | |
Chain | SRAM GX Eagle T-Type, 12s, Powerlock | |
Brakes | Front: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: SRAM Maven Bronze Hydraulic Disc | |
Brake Levers | SRAM Maven Bronze, SwingLink and lever pivot bushings, tools-free reach adjust |
Rims | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear | |
|---|---|---|
Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers | |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts | |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub | |
Tires | Front: Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead, Rear: Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) | |
|---|---|---|
Battery | Bosch Powertube 800Wh | |
Display | Kiox 400C / Bosch Mini Remote |
