Today’s Deals2025 Mondraker

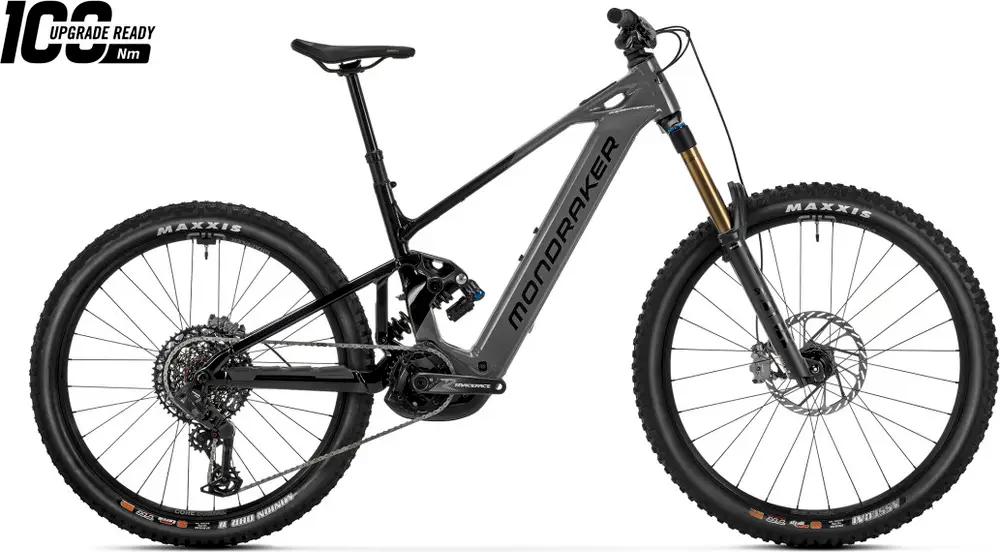

LEVEL RR
A 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
| Weight | 59.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 170 / 180mm |
| Fork | Fox Factory Float 38 |
| Shock | Fox DHX2 Performance Elite |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 Electronic |
| Groupset | Eagle AXS, S1000 Eagle Transmission |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | SRAM Maven Bronze Hydraulic Disc |
| Seatpost | Dropper |
5'3" – 5'9"
5'6" – 5'11"
5'8" – 6'2"
5'10" – 6'4"
6'2" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2023 · Ron Koch
Long-travel, electric-assist models like this Mondraker Level RR make gravity-friendly trails an absolute blast and render shuttles or chair lifts totally optional.
May 2022 · Alex Evans
Impressive when tackling gnarly terrain, but its weight and reduced battery life limit its all-round performance
Impressively composed in big terrain
Well-damped tyres with loads of grip
Weight doesn’t hinder it in technical or tight terrain
Impressive spec for the money
Bosch motor has loads of power
Suspension can feel harsh and punishes back wheels
Weight might be too much for lighter riders
A long seat tube and big standover could limit potential riders
May 2022
The Mondraker Level R review shows this bike's potential to be a ripper and is our pick of the shootout for the gnarliest high speed terrain. Read more now!
Bosch Motor Power
Rough terrain devouring
Pleasant pedaling
Big hit capabilities
Beautiful
Loves charging chunk!
E-Deemax Wheelset isn’t worthy
Bosch LED Remote
Brakes could be improved
Limited agility/hefty weight
| Frame | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers Hanger Standard: UDH |
|---|---|
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 180mm Spring Type: Air |
| Shock | Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings Travel: 170mm Spring Type: Coil |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) Type: Dropper |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Rear Derailleur | SRAM S1000 Eagle AXS T-Type, 12s |
|---|---|
| Crank | Race Face Aeffect ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Eagle AXS Pod MMX, 12s |
| Chain | SRAM GX Eagle T-Type, 12s, Powerlock |
| Brakes | Front: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: SRAM Maven Bronze Hydraulic Disc |
| Brake Levers | SRAM Maven Bronze, SwingLink and lever pivot bushings, tools-free reach adjust |
| Rims | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
|---|---|
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub |
| Tires | Front: Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead, Rear: Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
|---|---|
| Battery | Bosch Powertube 800Wh |
| Display | Kiox 400C / Bosch Mini Remote |
