MSRP | $3,940 | |
|---|---|---|
Where to Buy | $4,499 At Contender | |
Category | Trail | |
Frame | Aluminum | |
| RockShox Reba | ||
| RockShox Monarch RT | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM Level T Hydraulic Disc | ||
| NX | ||
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 140mm | |
Brand Site | ||

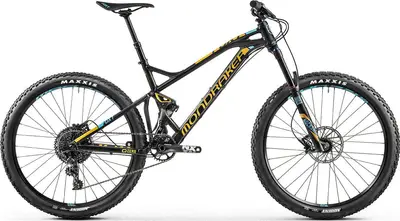

Summary | The Mondraker Foxy is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | RockShox Reba RL, Solo Air, 110x15mm axle, 32mm aluminum stanchions, rebound, compression adjustment at low-speed to lock, air preload Travel: 150mm Spring Type: Air | |
Shock | RockShox Monarch RT, Solo Air, HV tube, rebound, compression (3 positions), air preload, 200mm x 57mm Travel: 140mm | |
Bottom Bracket | SRAM GXP XR, sealed bearings, 73mm BSA | |
Headset | Onoff Saturn, tapered | |
Stem | Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp | |
Handlebar | Mondraker 6061 aluminum, double tapered, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp | |
Saddle | Mondraker Foxy R | |
Seatpost | Onoff Pija Dropper, S: 337mm length x 100mm travel, M/L/XL: 387mm length x 125mm travel Type: Dropper | |
Pedals | N/A | |
Grips | Onoff Diamond, lock-on, 130mm |
Rear Derailleur | SRAM NX, Type 3, roller bearing clutch, cage lock, 11-speed, long cage, X-Horizon system | |
|---|---|---|
Front Derailleur | N/A | |
Crank | SRAM NX16000, aluminum, 24mm axle, 170mm length (S/M), 175mm length (L/XL) | |
Shifters | SRAM Trigger NX1, 11-speed, Exact actuation, Zero Loss technology | |
Cassette | Sunrace CSMS8, 11-46 tooth, 11-speed | |
Chain | SRAM PC-1110, 11-speed | |
Chain Guide | N/A | |
Brakes | SRAM Level T, 180mm 6-bolt one-piece Centerline rotors, organic pads Type: SRAM Level T Hydraulic Disc | |
Brake Levers | SRAM Level T, length adjust, Matchmaker compatible, ambidextrous lever mount |
Rims | MDK-EP1, 27mm internal width, tubeless ready, 32 hole, asymmetrical | |
|---|---|---|
Spokes | CN round stainless steel | |
Front Hub | Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 148x12mm | |
Rear Hub | Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 148x12mm | |
Tires | Maxxis Ardent, single compound, 60tpi, wire bead, 27.5" x 2.4" |
