MSRP | ||
|---|---|---|
Where to Buy | ||
Category | Enduro, E-Bike | |
Weight | 45.2 lbs | |
Frame | Carbon | |
| Fox Podium Factory | ||
| Fox DHX2 Factory | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| SRAM Maven Bronze Hydraulic Disc | ||
| Bosch 600W 55Nm mid-drive | ||
| Bosch 400Wh | ||
| X0 Eagle Transmission, Eagle AXS | ||
Drivetrain | 1 × 12 Electronic | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 165mm | |
Brand Site | ||

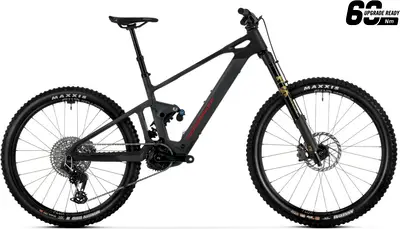

Summary | The Mondraker DUNE RR is a 29″ / 27.5″ carbon frame full suspension enduro e-bike with ultra high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. Hanger Standard: UDH | |
|---|---|---|
Fork | Fox Podium 29 GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 170mm Spring Type: Air | |
Shock | Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings Travel: 165mm Spring Type: Coil | |
Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock | |
Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore | |
Handlebar | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. | |
Saddle | Ergon Enduro SPS20 | |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type: Dropper | |
Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Rear Derailleur | SRAM X0 Eagle AXS T-Type,12s | |
|---|---|---|
Crank | E.13 Helix Race Alloy E*Spec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 | |
Shifters | SRAM Eagle AXS Pod MMX, 12s | |
Chain | SRAM GX Eagle T-Type, 12s, Powerlock | |
Brakes | Front: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: SRAM Maven Bronze Hydraulic Disc | |
Brake Levers | SRAM Maven Bronze, SwingLink and lever pivot bushings, tools-free reach adjust |
Rims | e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes | |
|---|---|---|
Spokes | e*thirteen Sapim D-light / Brass | |
Front Hub | e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts | |
Rear Hub | e*thirteen Superboost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub | |
Tires | Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Motor | Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide | |
|---|---|---|
Battery | Bosch Compact Powertube 400Wh | |
Display | Kiox 400C / Bosch Mini Remote |
