    MISSION 40002026 Merida
    Recommended
    MSRP
    ($2,977)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    4.7
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		40c
    		Shimano Hydraulic Disc
    		GRX 600, GRX 400
    Drivetrain
    		2 × 10
    Brand Site

    merida-bikes.com

    Summary

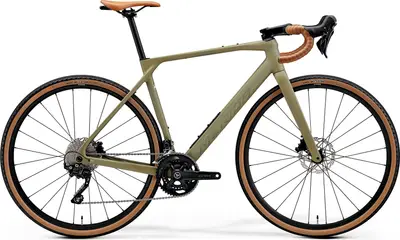

    		The Merida MISSION 4000 is a carbon frame gravel bike with mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    MISSION 4000
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    MISSION 4000

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MISSION 40002026 Merida
    Frame

    MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 100mm, Threaded

    Tire Clearance: 40c

    Fork

    MERIDA MISSION CF4 II, Tapered, material: carbon, 700x45C max. wheelsize

    Bottom Bracket

    Shimano BB-RS501, 68mm

    Headset

    Acros ICR MERIDA external neck w/diecast splitring

    Stem

    MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

    Handlebar

    MERIDA EXPERT GR II, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

    Saddle

    MERIDA COMP SL, 22% recycled material, V-mount

    Seatpost

    MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

    Type: Rigid

    Groupset
    Rear Derailleur

    Shimano GRX400

    Front Derailleur

    Shimano GRX400

    Crank

    Shimano GRX600, 46-30 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

    Shifters

    Shimano GRX 400, Hydraulic disc

    Cassette

    Shimano Claris HG50, 11-36 teeth, 10 speed

    Chain

    KMC X10

    Brakes

    Shimano STRX410, Disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano GRX 410

    Wheels
    Rims

    Shimano WH-RX180-700C, CL, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 25mm height, Centerlock, material: aluminium

    Front Hub

    MERIDA EXPERT TR, L=165,5mm M12x1,0 *including removable lever, 6/4mm allen key

    Rear Hub

    MERIDA EXPERT TR, L=165,5mm M12x1,0 *including removable lever, 6/4mm allen key

    Tires

    Front: Maxxis Receptor 40mm, 700x40C, Wire, EXO, Rear: Maxxis Receptor 40mm, 700x40C, Wire, EXO

    Disc Rotors

    Shimano RT54, 160mm
