Category | Fitness, E-Bike | |
Weight | 32.0 lbs | |
Frame | Aluminum | |
| Carbon | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
| Shimano Hydraulic Disc | ||
| MAHLE 40Nm hub-drive | ||
| MAHLE 248Wh | ||
| CUES | ||
Drivetrain | 1 × 9 | |
Brand Site | ||

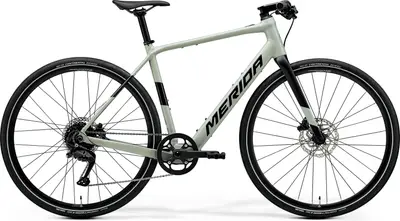

Summary | The Merida eSPEEDER 200 SE is a 700c aluminum frame fitness e-bike with mid-range components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | eSPEEDER LITE II, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard BB Standard: BSA, 100mm, Threaded Tire Clearance: 45c | |
|---|---|---|
Fork | MERIDA Mission CX, carbon, max. 700x40C (with fender) wheelsize | |
Bottom Bracket | BSA, 100mm, threaded | |
Headset | MERIDA 8158 | |
Handlebar | MERIDA EXPERT CC, material: aluminium, 620mm width, Flat | |
Saddle | MERIDA COMP SL, 28% recycled material, V-mount | |
Seatpost | MERIDA EXPERT, material: aluminium, 30.9mm diameter, 0mm setback Type: Rigid | |
Pedals | VP VPE-891 |
Rear Derailleur | Shimano CUES U3020, SGS | |
|---|---|---|
Crank | MERIDA COMP TK, 42 teeth, 165mm over all sizes | |
Shifters | Shimano CUES U4000 | |
Cassette | Shimano LG300, 11-36 teeth, 9 speed | |
Chain | Shimano LG500 | |
Brakes | Shimano MT200, 2 piston Type: Shimano Hydraulic Disc |
Rims | MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano HB-TC500, 100x12mm width front hub, 28 spoke holes, Centerlock | |
Rear Hub | Shimano HB-TC500, 100x12mm width front hub, 28 spoke holes, Centerlock | |
Tires | Continental Contact Urban, 700Cx40, wire | |
Disc Rotors | Shimano RT10 / Shimano RT26, 180 mm |
Motor | Mahle X35+, 40Nm | |
|---|---|---|
Battery | Mahle B1 248 Wh, integrated |
