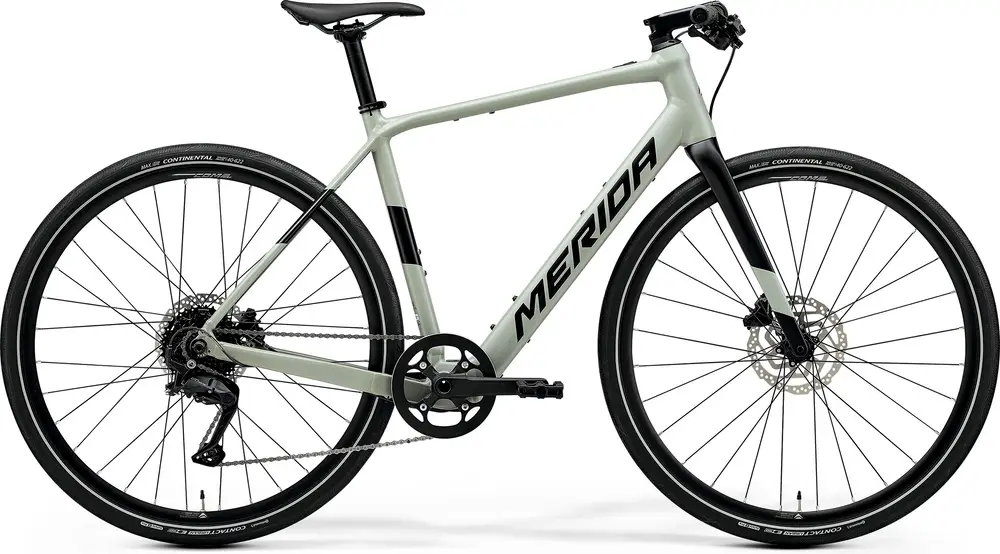

2025 Merida

eSPEEDER 200 SE

A 700c aluminum frame fitness e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range

Weight32.0 lbs
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetCUES
MotorMAHLE 40Nm hub-drive
BatteryMAHLE 248Wh
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
eSPEEDER 200 SE
Other Fitness bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

eSPEEDER 200 SE

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eSPEEDER LITE II, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 100mm, Threaded

Tire Clearance: 45c

Fork

MERIDA Mission CX, carbon, max. 700x40C (with fender) wheelsize

Bottom Bracket

BSA, 100mm, threaded

Headset

MERIDA 8158

Handlebar

MERIDA EXPERT CC, material: aluminium, 620mm width, Flat

Saddle

MERIDA COMP SL, 28% recycled material, V-mount

Seatpost

MERIDA EXPERT, material: aluminium, 30.9mm diameter, 0mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano CUES U3020, SGS

Crank

MERIDA COMP TK, 42 teeth, 165mm over all sizes

Shifters

Shimano CUES U4000

Cassette

Shimano LG300, 11-36 teeth, 9 speed

Chain

Shimano LG500

Brakes

Shimano MT200, 2 piston

Type: Shimano Hydraulic Disc

Wheels
Rims

MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium

Spokes

Black stainless

Front Hub

Shimano HB-TC500, 100x12mm width front hub, 28 spoke holes, Centerlock

Rear Hub

Shimano HB-TC500, 100x12mm width front hub, 28 spoke holes, Centerlock

Tires

Continental Contact Urban, 700Cx40, wire

Disc Rotors

Shimano RT10 / Shimano RT26, 180 mm

Electric Components
Motor

Mahle X35+, 40Nm

Battery

Mahle B1 248 Wh, integrated
