    eONE-SIXTY 90002022 Merida
    Recommended
    MSRP
    ($10,562)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    7.1
    Frame
    		Carbon
    		Fox Performance Elite Float 38
    		Fox Float DPX2 Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano XT Hydraulic Disc
    		Shimano 85Nm mid-drive
    		Shimano 630Wh
    		XT
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		150mm
    Brand Site

    merida-bikes.com

    Summary

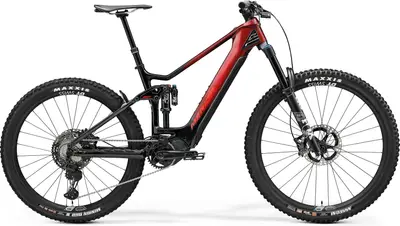

    		The Merida eONE-SIXTY 9000 is a 29″ / 27.5″ carbon frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-SIXTY 9000
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-SIXTY 9000

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-SIXTY 90002022 Merida
    Frame

    eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, MUK 37 Hanger

    BB Standard: BSA, 73mm, Threaded

    Fork

    FOX 38 Elite eMTB+ Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize

    Travel: 160mm

    Spring Type: Air

    Shock

    FOX Float DPX2 Elite, platform

    Travel: 150mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8152

    Stem

    MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Saddle

    MERIDA EXPERT CC, V-mount

    Seatpost

    MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano XT RDM8130 Shadow+ 11

    Crank

    Shimano CRE80-B, 34 teeth

    Shifters

    Shimano SL -MT800-IL / Shimano XT M8130

    Cassette

    Shimano LG600, 11-50 teeth, 11 speed

    Chain

    CNLG500

    Brakes

    Shimano XT, 4 piston

    Type: Shimano XT Hydraulic Disc

    Wheels
    Rims

    DT Swiss Spline HX1501 ONE 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, material: aluminium, Tubeless ready (tubeless tape and valves included)

    Front Hub

    MERIDA EXPERT TR, including removeable lever, 6/4mm allen key

    Rear Hub

    MERIDA EXPERT TR, including removeable lever, 6/4mm allen key

    Tires

    Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.6 ", fold, 3C EXO+ TR

    Disc Rotors

    Shimano RT-MT900 / Shimano RT-EM910, 203 mm

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Shimano E8036 630Wh / Shimano E8035 504Wh for XS only

    Display

    Shimano SC-EM800

    Charger

    Shimano EC-E8004, 4A charging current

    Accessories
    Lights

    Lezyne E-Bike Power E115 / Lezyne LED Femto USB, StVZO, reverse MERIDA Custom Mount, StVZO

    Fenders

    C093-02F + C093-02R
