    eONE-FORTY 80002024 Merida
    Recommended
    MSRP
    ($6,458)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    6.7
    Frame
    		Carbon
    		Fox Rhythm Float 34
    		Fox Float DPS Performance
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano SLX Hydraulic Disc
    		Shimano 85Nm mid-drive
    		Shimano 630Wh
    		XT, Deore
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		133mm
    Brand Site

    merida-bikes.com

    Summary

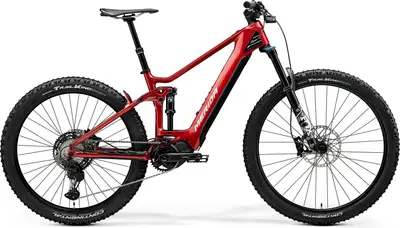

    		The Merida eONE-FORTY 8000 is a 27.5″ carbon frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY 8000
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    eONE-FORTY 8000

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-FORTY 80002024 Merida
    Frame

    eONE-FORTY CFA II, material: carbon, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh

    BB Standard: BSA, 73mm, Threaded

    Fork

    FOX Rhythm 34 Float eMTB+, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.5" max wheelsize

    Travel: 140mm

    Spring Type: Air

    Shock

    FOX Performance Float DPS, lockout

    Travel: 133mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8152

    Handlebar

    MERIDA EXPERT eTR, 780mm width, 20mm rise

    Saddle

    MERIDA EXPERT CC, V-mount

    Seatpost

    MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - S/M 125mm travel seatpost - L 150mm travel seatpost - XL/XXL 170mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano XT RDM8130 Shadow+ 11

    Crank

    Shimano CRE80-B, 34 teeth

    Shifters

    Shimano SL -MT500-IL

    Cassette

    Shimano LG600, 11-50 teeth, 11 speed

    Chain

    CNLG500

    Brakes

    Shimano SLX, 4 piston

    Type: Shimano SLX Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano XT, 148x12mm width rear hub, 36 spoke holes, Centerlock

    Tires

    Continental Trail King, 29x2.4 ", fold, BlackChili, ProTection Apex, TR

    Electric Components
    Motor

    Shimano EP8, 85Nm

    Battery

    Shimano E8036 630Wh / Shimano E8035 504Wh for S only

    Display

    Shimano SC-E7000

    Accessories
    Fenders

    C093-02F + C093-02R
