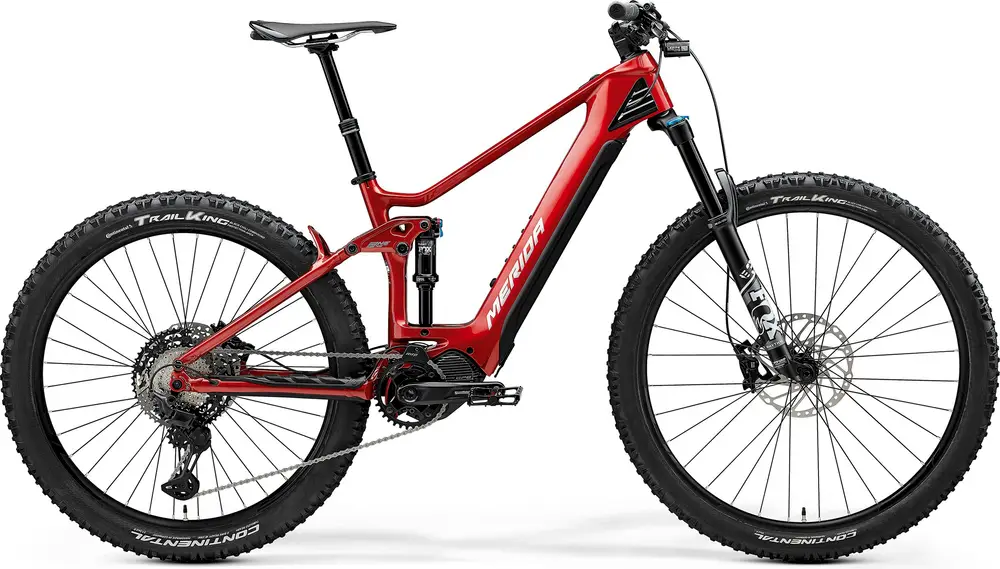

2024 Merida

eONE-FORTY 8000

A 27.5″ carbon frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

NZ$10,999($6,458)
FrameCarbon
SuspensionFull, 133 / 140mm
ForkFox Rhythm Float 34
ShockFox Float DPS Performance
Wheels27.5″ Aluminum
Drivetrain1 × 11
GroupsetXT, Deore
MotorShimano 85Nm mid-drive
BatteryShimano 630Wh
BrakesShimano SLX Hydraulic Disc
SeatpostDropper
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eONE-FORTY 8000
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

eONE-FORTY 8000

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full eONE-FORTY model range

View Comparison
Reviews
Bikerumor
Merida Revamps Lighter eMTB eOne-Sixty & eOne-Forty with More eBike Range & Travel

Mar 2024 · Cory Benson

3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...

Read Review

EMTB Forums
The new Merida eOne-Sixty is finally here, and the eOne-Forty too

Mar 2024 · Knut Nes

Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...

Read Review

E-Mountainbike Magazine
MERIDA eONE-Forty EQ in review – An eMTB wolf in a trekking sheep's clothing

Sep 2021 · Rudolf Fischer

With the eONE-FORTY EQ, MERIDA enter our E-trekking bike group test with a thoroughbred eMTB with a Shimano EP8 motor and trekking equipment.

Highs

  • Top riding fun and precise handling on paths and trails

  • Tidy cockpit

  • Multi-tool under the saddle

Lows

  • No connectivity

  • Demanding handling

Read Review

Geometry
Specs
Build
Frame

eONE-FORTY CFA II, material: carbon, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh

BB Standard: BSA, 73mm, Threaded

Fork

FOX Rhythm 34 Float eMTB+, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.5" max wheelsize

Travel: 140mm

Spring Type: Air

Shock

FOX Performance Float DPS, lockout

Travel: 133mm

Bottom Bracket

BSA, 73mm, threaded

Headset

MERIDA 8152

Handlebar

MERIDA EXPERT eTR, 780mm width, 20mm rise

Saddle

MERIDA EXPERT CC, V-mount

Seatpost

MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - S/M 125mm travel seatpost - L 150mm travel seatpost - XL/XXL 170mm travel seatpost

Type: Dropper

Pedals

VP VPE-527

Groupset
Rear Derailleur

Shimano XT RDM8130 Shadow+ 11

Crank

Shimano CRE80-B, 34 teeth

Shifters

Shimano SL -MT500-IL

Cassette

Shimano LG600, 11-50 teeth, 11 speed

Chain

CNLG500

Brakes

Shimano SLX, 4 piston

Type: Shimano SLX Hydraulic Disc

Wheels
Rims

MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

Spokes

Black stainless

Front Hub

Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano XT, 148x12mm width rear hub, 36 spoke holes, Centerlock

Tires

Continental Trail King, 29x2.4 ", fold, BlackChili, ProTection Apex, TR

Electric Components
Motor

Shimano EP8, 85Nm

Battery

Shimano E8036 630Wh / Shimano E8035 504Wh for S only

Display

Shimano SC-E7000

Accessories
Fenders

C093-02F + C093-02R
