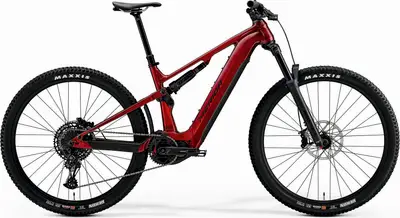

    eONE-FORTY 6752025 Merida
    Recommended
    MSRP
    ($6,996)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		57.3 lbs
    6.0
    Frame
    		Aluminum
    		Suntour AION
    		RockShox Super Deluxe Select
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM DB8 Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		750Wh
    		NX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		143mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida eONE-FORTY 675 is a 29″ aluminum frame full suspension trail e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY 675
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    eONE-FORTY 675

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-FORTY 6752025 Merida
    Frame

    eONE-FORTY LITE IV, material: aluminium, 143 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour AION X 36 Boost, Air, 150 mm suspension travel, Tapered, 44 mm fork offset, 29x2.5" max. wheelsize

    Travel: 150mm

    Spring Type: Air

    Shock

    Rock Shox Super Deluxe Select

    Travel: 143mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA EXTERNAL neck w/ Blocklock

    Stem

    MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes

    Handlebar

    MERIDA EXPERT eTR, 780 mm width, 20 mm rise

    Saddle

    MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost

    Type: Dropper

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    SRAM NX Eagle

    Crank

    FSA 1x Steel Megatooth Chainring, 36 teeth

    Shifters

    Limotec RM10 (For SRAM mmX) / SRAM NX Eagle 12

    Cassette

    SRAM PG-1210 Eagle, 10-50 teeth, 12 speed

    Chain

    SRAM SX Eagle

    Brakes

    SRAM DB8, 4 piston

    Type: SRAM DB8 Hydraulic Disc

    Wheels
    Rims

    MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

    Spokes

    Black stainless

    Front Hub

    Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt

    Rear Hub

    Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt

    Tires

    Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra

    Disc Rotors

    SRAM CenterLine, 200 mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Trendpower Internal Battery 750Wh

    Display

    Shimano SC-EN600

    Charger

    Trendpower EU Charger, 4A

    Accessories
    Lights

    Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount / Chance Good USB CG-214RG

    Fenders

    Winning EOF-204
