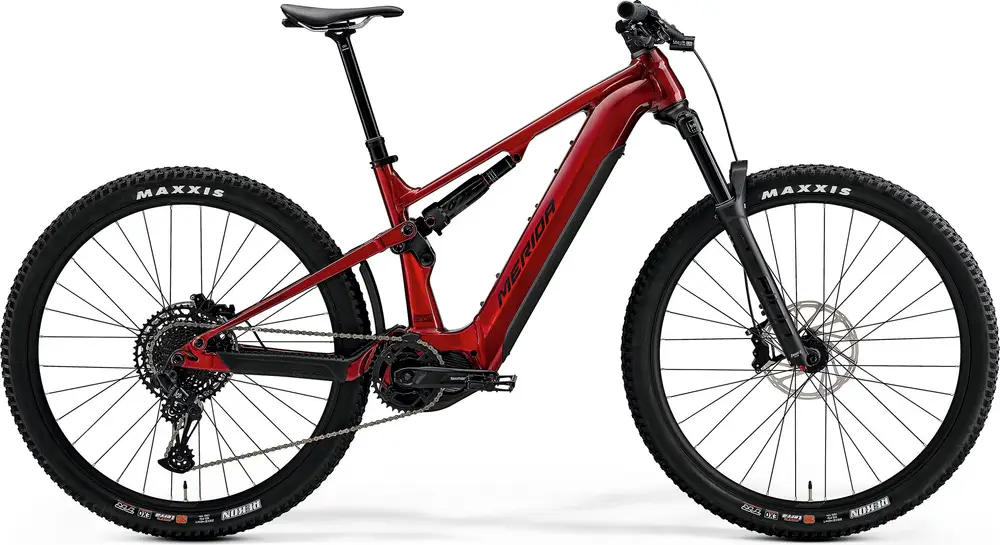

2025 Merida

eONE-FORTY 675

A 29″ aluminum frame full suspension trail e-bike with high-end components.
Compare the full range

Manufacturer Price

£5,200($6,996)
Price History
Weight57.3 lbs
FrameAluminum
SuspensionFull, 143 / 150mm
ForkSuntour AION
ShockRockShox Super Deluxe Select
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetNX Eagle
MotorShimano 600W 85Nm mid-drive
Battery750Wh
BrakesSRAM DB8 Hydraulic Disc
SeatpostDropper
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eONE-FORTY 675
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

eONE-FORTY 675

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Price History
Reviews
Bikerumor
Merida Revamps Lighter eMTB eOne-Sixty & eOne-Forty with More eBike Range & Travel

Mar 2024 · Cory Benson

3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...

Read Review

EMTB Forums
The new Merida eOne-Sixty is finally here, and the eOne-Forty too

Mar 2024 · Knut Nes

Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...

Read Review

Geometry
Specs
Build
Frame

eONE-FORTY LITE IV, material: aluminium, 143 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube

BB Standard: BSA, 73mm, Threaded

Fork

SR Suntour AION X 36 Boost, Air, 150 mm suspension travel, Tapered, 44 mm fork offset, 29x2.5" max. wheelsize

Travel: 150mm

Spring Type: Air

Shock

Rock Shox Super Deluxe Select

Travel: 143mm

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Stem

MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes

Handlebar

MERIDA EXPERT eTR, 780 mm width, 20 mm rise

Saddle

MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

Seatpost

MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost

Type: Dropper

Pedals

VP VPE-527

Groupset
Rear Derailleur

SRAM NX Eagle

Crank

FSA 1x Steel Megatooth Chainring, 36 teeth

Shifters

Limotec RM10 (For SRAM mmX) / SRAM NX Eagle 12

Cassette

SRAM PG-1210 Eagle, 10-50 teeth, 12 speed

Chain

SRAM SX Eagle

Brakes

SRAM DB8, 4 piston

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

Spokes

Black stainless

Front Hub

Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt

Rear Hub

Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt

Tires

Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra

Disc Rotors

SRAM CenterLine, 200 mm

Electric Components
Motor

Shimano EP801, 85Nm

Battery

Trendpower Internal Battery 750Wh

Display

Shimano SC-EN600

Charger

Trendpower EU Charger, 4A

Accessories
Lights

Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount / Chance Good USB CG-214RG

Fenders

Winning EOF-204
