 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail, E-Bike | |
Weight | 49.6 lbs | |
| Carbon | ||
Fork | Marzocchi Bomber Z2 | |
Shock | Suntour | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
| Shimano 250W 60Nm mid-drive | ||
| Shimano 504Wh | ||
Groupset | Deore, Shimano | |
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 140mm | |
Rear Travel | 133mm | |
Brand Site | ||

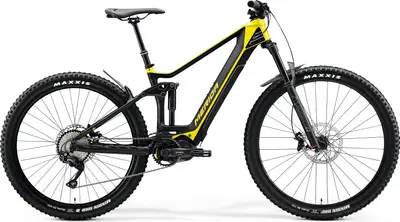

Summary | The Merida eONE-FORTY 5000 is a 27.5″ carbon frame full suspension trail e-bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | eONE-FORTY CFA, material: carbon, 133mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Marzocchi Z2 E-Bike, Air, 140mm suspension travel, Tapered, 51mm fork offset | |
Shock | SUNTOUR RS EDGE TR LOR8, lockout | |
Bottom Bracket | included | |
Headset | MERIDA 1901 | |
Handlebar | MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise | |
Saddle | MERIDA Comp CC, V-mount, incl. MERIDA minitool | |
Seatpost | MERIDA COMP TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - M/L/XL/XXL 125mm travel seatpost | |
Pedals | VP, VPE-537 |
Rear Derailleur | Shimano Deore Shadow+ | |
|---|---|---|
Crank | Shimano CRE70-B, 34 teeth, Shimano FC-E8000 | |
Shifters | Shimano Deore | |
Cassette | Shimano HG500, 11-42 teeth, 10 speed | |
Chain | CNHG54 | |
Brakes | Shimano MT-520, 4 piston |
Rims | MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano Deore, 110x15mm width front hub, 32 spoke holes, Centerlock | |
Rear Hub | Shimano Deore, 148x12mm width rear hub, 36 spoke holes, Centerlock | |
Tires | Maxxis DHF, 29x2.5 ", fold, 3C EXO TR |
Motor | Shimano E7000, 60Nm | |
|---|---|---|
Battery | Shimano E8035, 504Wh | |
Display | Shimano SC-E7000 |
Fenders | C093-02F + C093-02R |
|---|
