Bike Comparison
    eONE-FORTY 475 EQ2024 Merida
    Recommended
    MSRP
    ($5,397)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    5.4
    Frame
    		Aluminum
    Fork
    		Suntour Zeron
    Shock
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		29″
    Brakes
    		Hydraulic Disc
    Motor
    		Shimano 600W 85Nm mid-drive
    Battery
    		750Wh
    Groupset
    		CUES, Deore
    Drivetrain
    		1 × 10
    Brand Site

    merida-bikes.com

    Summary

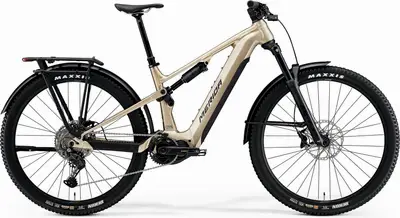

    		The Merida eONE-FORTY 475 EQ is a 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eONE-FORTY 475 EQ
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    eONE-FORTY 475 EQ

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    eONE-FORTY 475 EQ2024 Merida
    Frame

    eONE-FORTY LITE IV, material: aluminium, 143 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour Zeron 36 X, platform

    Shock

    SR Suntour Edge Plus, platform

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA EXTERNAL neck w/ Blocklock

    Handlebar

    MERIDA EXPERT eTR, 780 mm width, 20 mm rise

    Saddle

    MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

    Seatpost

    MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost

    Pedals

    VP VPE-527

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    FSA 1x Steel Megatooth Chainring, 36 teeth

    Shifters

    Shimano SL -MT500-IL

    Cassette

    Shimano LG400, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT420, 4 piston

    Wheels
    Rims

    MERIDA COMP TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B, 110x15 mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-HM-B, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra

    Disc Rotors

    Shimano RT64 / Shimano RT-EM600, 203 mm

    Electric Components
    Motor

    Shimano EP801, 85Nm

    Battery

    Trendpower Internal Battery 750Wh

    Display

    Shimano SC-EN600

    Accessories
    Fenders

    Winning EOF-204

    Racks

    MERIDA MIK HD Carrier with Spring clip & Spanninga rear light

    Stand

    Atranvelo ED-100-PC
