2024 Merida
eONE-FORTY 475 EQ

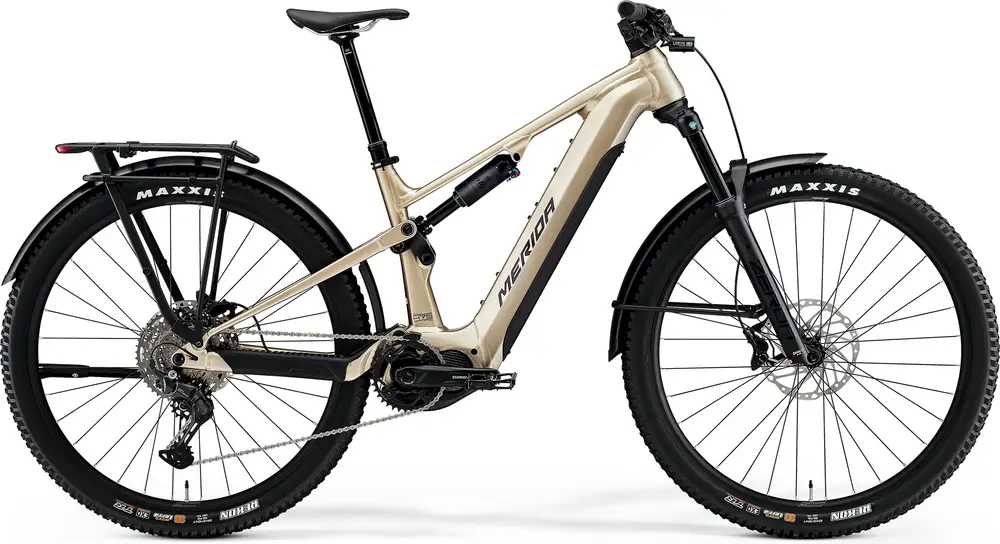

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
NZ$8,599($5,397)| Frame | Aluminum |
|---|---|
| Suspension | Full, 143mm rear |
| Fork | Suntour Zeron |
| Shock | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES, Deore |
| Motor | Shimano 85Nm mid-drive |
| Battery | 750Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full eONE-FORTY model range
View Comparison
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
Sep 2021 · Rudolf Fischer
With the eONE-FORTY EQ, MERIDA enter our E-trekking bike group test with a thoroughbred eMTB with a Shimano EP8 motor and trekking equipment.
Top riding fun and precise handling on paths and trails
Tidy cockpit
Multi-tool under the saddle
No connectivity
Demanding handling
| Frame | eONE-FORTY LITE IV, material: aluminium, 143 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | SR Suntour Zeron 36 X, platform |
| Shock | SR Suntour Edge Plus, platform Travel: 143mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Handlebar | MERIDA EXPERT eTR, 780 mm width, 20 mm rise |
| Saddle | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Seatpost | MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost Type: Dropper |
| Pedals | VP VPE-527 |
| Rear Derailleur | Shimano CUES U6000, GS |
|---|---|
| Crank | FSA 1x Steel Megatooth Chainring, 36 teeth |
| Shifters | Shimano SL -MT500-IL |
| Cassette | Shimano LG400, 11-48 teeth, 10 speed |
| Chain | Shimano LG500 |
| Brakes | Shimano MT420, 4 piston Type: Hydraulic Disc |
| Rims | MERIDA COMP TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes | Black stainless |
| Front Hub | Shimano TC500-B, 110x15 mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub | Shimano TC500-HM-B, 148x12 mm width rear hub, 32 spoke holes, Centerlock |
| Tires | Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra |
| Disc Rotors | Shimano RT64 / Shimano RT-EM600, 203 mm |
| Motor | Shimano EP801, 85Nm |
|---|---|
| Battery | Trendpower Internal Battery 750Wh |
| Display | Shimano SC-EN600 |
| Fenders | Winning EOF-204 |
|---|---|
| Racks | MERIDA MIK HD Carrier with Spring clip & Spanninga rear light |
| Stand | Atranvelo ED-100-PC |
Last updated May 13
