MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail, E-Bike | |
Weight | 41.6 lbs | |
Frame | ||
| Suntour RAIDON | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Alivio Hydraulic Disc | ||
| Shimano 250W 60Nm mid-drive | ||
| Shimano 504Wh | ||
| Deore | ||
Drivetrain | 1 × 10 | |
Suspension | Hardtail | |
Front Travel | 130mm | |
Brand Site | ||

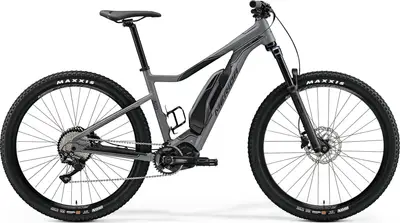

Summary | The Merida eBIG.TRAIL 500 is a 27.5″ hardtail trail e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | eBIG.TRAIL | |
|---|---|---|
Fork | Suntour Raidon34, Air, 130mm suspension travel, Tapered Travel: 130mm Spring Type: Air | |
Shock | N/A | |
Headset | FSA NO.55EP neck, 2191017484 | |
Stem | Merida Expert eTR, 35mm diameter, 0° stem angle | |
Handlebar | MERIDA Expert eTR, 780mm width, 20mm rise | |
Saddle | MERIDA Comp CC | |
Seatpost | MERIDA Expert, 30.9mm diameter, 15mm setback Type: Rigid | |
Pedals | VP, VPE-537 | |
Grips | Merida Expert EC |
Rear Derailleur | Shimano Deore Shadow+ | |
|---|---|---|
Front Derailleur | no | |
Crank | Shimano CRE70-B, 34 teeth | |
Shifters | no / Shimano Deore | |
Cassette | Shimano HG500, 11-42 teeth, 10 speed | |
Chain | KMC e11T | |
Chain Guide | Mr. Control CH-E8 mini | |
Brakes | Shimano MT-200 Type: Shimano Alivio Hydraulic Disc | |
Brake Levers | attached |
Rims | MERIDA Expert CC, 22.8mm inner width | |
|---|---|---|
Spokes | Black stainless | |
Front Hub | Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock | |
Rear Hub | Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock | |
Tires | Maxxis Ikon, 27.5x2.35", fold |
Motor | Shimano E7000, 60Nm | |
|---|---|---|
Battery | Shimano E8010, 504 Wh | |
Remote | Shimano SC-E7000 | |
Display | Shimano SC-E7000 |
