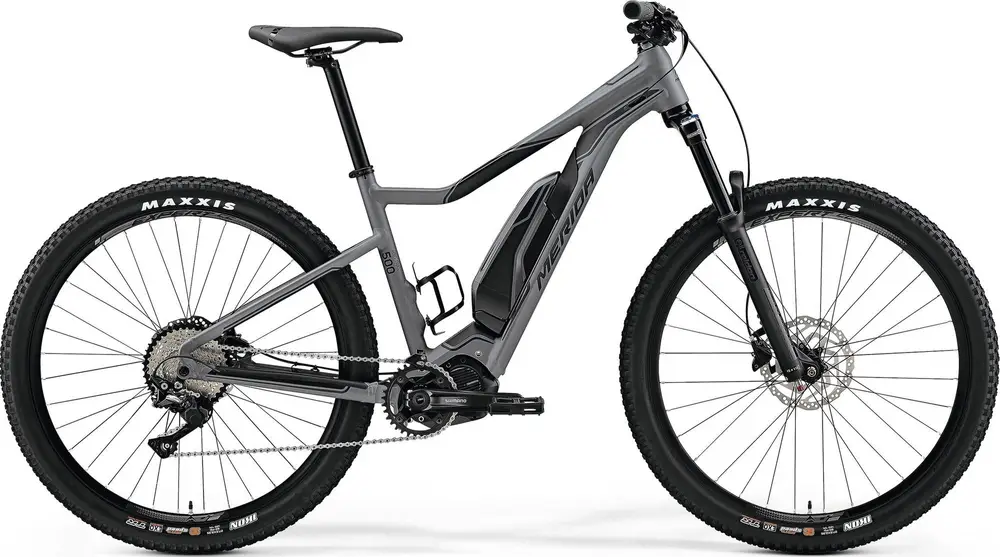

2019 Merida

eBIG.TRAIL 500

A 27.5″ hardtail trail e-bike with upper mid-range components.
Compare the full range

Weight41.6 lbs
SuspensionHardtail, 130mm
ForkSuntour RAIDON
Wheels27.5″ Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorShimano 250W 60Nm mid-drive
BatteryShimano 504Wh
BrakesShimano Alivio Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eBIG.TRAIL 500
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

eBIG.TRAIL 500

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eBIG.TRAIL

Fork

Suntour Raidon34, Air, 130mm suspension travel, Tapered

Travel: 130mm

Spring Type: Air

Shock

N/A

Headset

FSA NO.55EP neck, 2191017484

Stem

Merida Expert eTR, 35mm diameter, 0° stem angle

Handlebar

MERIDA Expert eTR, 780mm width, 20mm rise

Saddle

MERIDA Comp CC

Seatpost

MERIDA Expert, 30.9mm diameter, 15mm setback

Type: Rigid

Pedals

VP, VPE-537

Grips

Merida Expert EC

Groupset
Rear Derailleur

Shimano Deore Shadow+

Front Derailleur

no

Crank

Shimano CRE70-B, 34 teeth

Shifters

no / Shimano Deore

Cassette

Shimano HG500, 11-42 teeth, 10 speed

Chain

KMC e11T

Chain Guide

Mr. Control CH-E8 mini

Brakes

Shimano MT-200

Type: Shimano Alivio Hydraulic Disc

Brake Levers

attached

Wheels
Rims

MERIDA Expert CC, 22.8mm inner width

Spokes

Black stainless

Front Hub

Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock

Rear Hub

Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock

Tires

Maxxis Ikon, 27.5x2.35", fold

Electric Components
Motor

Shimano E7000, 60Nm

Battery

Shimano E8010, 504 Wh

Remote

Shimano SC-E7000

Display

Shimano SC-E7000
