    eBIG.NINE 4752023 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		53.1 lbs
    4.6
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Alivio Hydraulic Disc
    		Shimano 600W 85Nm mid-drive
    		750Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    merida-bikes.com

    Summary

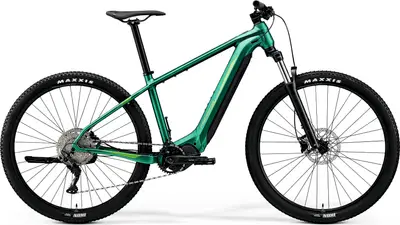

    		The Merida eBIG.NINE 475 is a 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    eBIG.NINE 475
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    eBIG.NINE 475

    Highest gear

    (descending)

    Geometry
    Specs
    eBIG.NINE 4752023 Merida
    Frame

    eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize, 148x12 mm axle standard, intube

    BB Standard: BSA, 73mm, Threaded

    Fork

    SR Suntour XCM34-Boost LOR DS, 100 mm, Tapered, 51 mm fork offset, 29x2.4" max. wheelsize

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    MERIDA 8157

    Handlebar

    MERIDA MERIDA EXPERT TR II, 760 mm width, 18 mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback

    Type: Rigid

    Pedals

    VP VPE-537

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    Shimano CRE70-B, 34 teeth

    Shifters

    Shimano CUES U6000

    Cassette

    Shimano LG300, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT-200, 2 piston

    Type: Shimano Alivio Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25 mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Ikon, 29x2.2", kevlar bead

    Disc Rotors

    Shimano RT30, 180 mm

    Electric Components
    Motor

    Shimano EP6, 85Nm

    Battery

    Trendpower Internal Battery 750Wh

    Display

    Shimano SC-EN500

    Accessories
    Stand

    Massload CL-KA98
