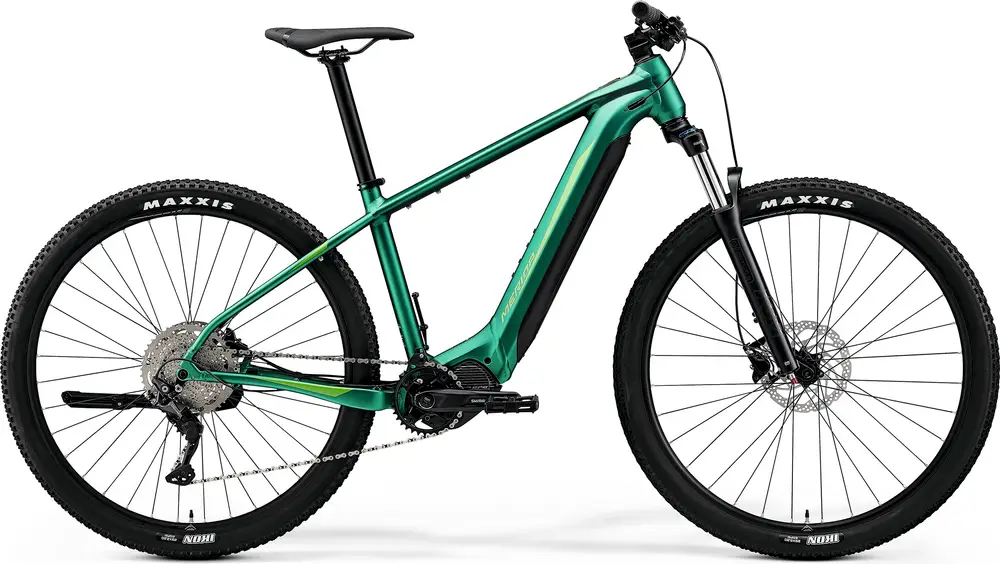

2023 Merida

eBIG.NINE 475

A 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

Weight53.1 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
Battery750Wh
BrakesShimano Alivio Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eBIG.NINE 475
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

eBIG.NINE 475

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize, 148x12 mm axle standard, intube

BB Standard: BSA, 73mm, Threaded

Fork

SR Suntour XCM34-Boost LOR DS, 100 mm, Tapered, 51 mm fork offset, 29x2.4" max. wheelsize

Travel: 100mm

Spring Type: Coil

Bottom Bracket

BSA, 73mm, threaded

Headset

MERIDA 8157

Handlebar

MERIDA MERIDA EXPERT TR II, 760 mm width, 18 mm rise

Saddle

MERIDA COMP SL, V-mount

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback

Type: Rigid

Pedals

VP VPE-537

Groupset
Rear Derailleur

Shimano CUES U6000, GS

Crank

Shimano CRE70-B, 34 teeth

Shifters

Shimano CUES U6000

Cassette

Shimano LG300, 11-48 teeth, 10 speed

Chain

Shimano LG500

Brakes

Shimano MT-200, 2 piston

Type: Shimano Alivio Hydraulic Disc

Wheels
Rims

MERIDA COMP CC II, 25 mm inner width, material: aluminium

Spokes

Black stainless

Front Hub

Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Ikon, 29x2.2", kevlar bead

Disc Rotors

Shimano RT30, 180 mm

Electric Components
Motor

Shimano EP6, 85Nm

Battery

Trendpower Internal Battery 750Wh

Display

Shimano SC-EN500

Accessories
Stand

Massload CL-KA98
