Today’s Deals | Recommended |
|---|
MSRP | $5,279 | |
|---|---|---|
Where to Buy | $3,429 36% off At Jenson USA | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| Fox Performance Elite Float 38 | ||
| Fox DHX2 Performance Elite | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| TRP DH-R EVO Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 750Wh | ||
| XT, SLX | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 160mm | |
Brand Site | ||

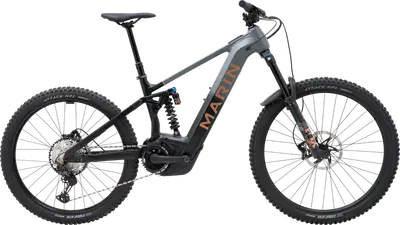

Summary | The Marin Alpine Trail E2 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | All New Series 4 Alloy, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle BB Standard: Bosch, Press Fit Color: Grey Black | |
|---|---|---|
Fork | Fox 38 Performance Elite, 170mm Travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender Travel: 170mm Spring Type: Air | |
Shock | Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 30mmxM8 Lower Mount, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb Travel: 160mm Spring Type: Coil | |
Bottom Bracket | Bosch Performance CX, 600W, 85Nm | |
Headset | FSA Custom Headset, Adjustable HTA Design | |
Stem | Marin CNC, 35mm Length, 35mm Bar Bore | |
Handlebar | Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back | |
Saddle | Marin Speed Concept | |
Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Grizzly Lock-On |
Rear Derailleur | Shimano XT 12-Speed, SGS | |
|---|---|---|
Crank | e*thirteen e*spec Plus Cranks, 160mm Length | |
Shifters | Shimano SLX 12-Speed, I-Spec EV | |
Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T | |
Chain | KMC E12S, E-Bike Specific | |
Chain Guide | e*thirteen e*Spec Chainguide | |
Brakes | TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm 2.3mm Thick Rotor Type: TRP DH-R EVO Hydraulic Disc | |
Brake Levers | TRP DH-R EVO |
Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Spokes | 14g Black Stainless Steel | |
Front Hub | Shimano Front Hub, 110x10 Thru Axle, 32H, Centerlock | |
Rear Hub | Shimano FHTC500, 148x12 Thru Axle, Mircospline, 32H, Centerlock | |
Tires | Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5" |
Motor | Bosch Performance CX, 600W, 85Nm | |
|---|---|---|
Battery | Bosch PowerTube 750Wh | |
Display | Bosch BRC3100 Systems Controller |
