MSRP | $6,299 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Frame | Aluminum | |
| Fox Performance Elite Float 38 | ||
| Fox DHX2 Performance Elite | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| TRP DH-R EVO Hydraulic Disc | ||
| Shimano 250W 85Nm mid-drive | ||
| Shimano 630Wh | ||
| XT, SLX | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 150mm | |
Brand Site | ||

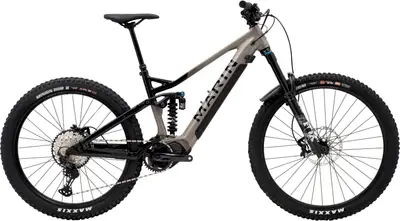

Summary | The Marin Alpine Trail E2 is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor BB Standard: BSA, 73mm, Threaded Color: Gloss Grey / Black | |
|---|---|---|
Fork | Fox 38 Performance Elite, 160mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender Travel: 160mm Spring Type: Air | |
Shock | Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb Travel: 150mm Spring Type: Coil | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” | |
Stem | Marin CNC, 35mm Length, 35mm Bar Bore | |
Handlebar | Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back | |
Saddle | Marin eMTB Saddle | |
Seatpost | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm Type: Dropper | |
Pedals | Marin MTB Plastic | |
Grips | Marin Grizzly Lock On |
Rear Derailleur | Shimano XT 12-Speed, SGS | |
|---|---|---|
Crank | Shimano XT M8150, 160mm Length, 38t Chainring | |
Shifters | Shimano SLX 12-Speed, I-Spec EV | |
Cassette | SunRace 12-speed, 11-51 | |
Chain | KMC E12S, eMTB-Specific Chain | |
Brakes | TRP DH-R Evo, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor Type: TRP DH-R EVO Hydraulic Disc | |
Brake Levers | TRP DH-R Evo |
Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible | |
|---|---|---|
Spokes | 14g Black Stainless Steel | |
Front Hub | Forged Aluminum, 110x15mm, Disc, 32H | |
Rear Hub | Forged Aluminum, 148x12mm, Disc, 32H | |
Tires | Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible |
Motor | Shimano Steps EP801 Drive Unit, 250W, 85Nm | |
|---|---|---|
Battery | Shimano BT-EN806, Internal 630Wh | |
Display | Shimano SC-E600 |
