    Subvert HT52017 Haro
    Recommended
    MSRP
    $1,629
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.5
    Frame
    		Aluminum
    		Suntour RAIDON
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		SLX
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    haromtb.com

    Summary

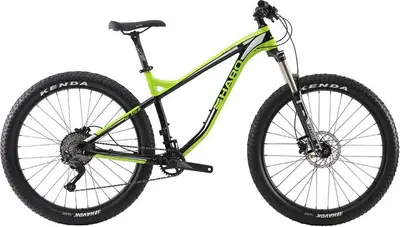

    		The Haro Subvert HT5 is a 27.5″ aluminum frame hardtail trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Subvert HT5
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    22 mph

    Subvert HT5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Subvert HT52017 Haro
    Frame

    6061-T6 Series Alloy Hardtail Frame, 27.5" Plus / 29" Geometry, Tapered 1.5" Head Tube, 73mm BB Shell, 12X148mm Boost Thru-Axle Dropouts, Internal Cable Routing

    Fork

    2017 SR Suntour Raidon 32 RLR DS-27.5 Plus; 1-1/8 - 1.5in Tapered Alloy Steerer, 120mm Travel, Air Spring w/ Remote Lockout, Boost 150x110mm Thru-Axle

    Travel: 120mm

    Spring Type: Air

    Shock

    N/A

    Bottom Bracket

    Mega Exo BB-7100 Boost

    Headset

    FPD Dozer-1048 w/ 1.5" ACB Bottom For 44/56mm Head Tube

    Stem

    Pivit Alloy Trail, Cold Forged, 0 Deg. 4-Bolts, 60 To 70mm Ext.

    Handlebar

    Ritchey MTN Trail Low Riser, 20mm Rise, 740 / 760 mm Wide; 9 Deg. Sweep

    Saddle

    WTB Rocket Sport

    Seatpost

    Ritchey Trail 2-Bolts, Alloy Micro Adjust 31.6mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    2017 Shimano SLX, RD-M7000, SGS 10/11-Spd Top Normal, Shadow Plus

    Front Derailleur

    N/A

    Crank

    FSA Comet Modular MegaExo Boost, 30t Megatooth Crmo Chainring

    Shifters

    2017 Shimano SLX, SL-M7000, 1x11-Spd, Right Side Only, w/o Optical Gear Display

    Cassette

    Shimano CS-M7000, 11-42t, 11-Spd

    Chain

    KMC X11-1 NP/GY, 1/2" X 11/128", 1x11 Specific

    Brakes

    Shimano BR-M395 Hydraulic 180/160mm Rotors

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-M396

    Wheels
    Rims

    WTB Scraper i40 27.5"Plus, 45mm Width, Alloy DW Rims w/ TCS i40 Rim Tape, Pivit Boost Alloy Disc Hubs, 32h, w/ Sealed Bearings, Thru-Axles 150x110mm Front & 12X148mm Rear, 11-Spd Cassette

    Tires

    Kenda Havoc 27.5x3.0", TCS, Aramid Bead 60 tpi
