Shimano BR-M395 Hydraulic 180/160mm Rotors

KMC X11-1 NP/GY, 1/2" X 11/128", 1x11 Specific

FSA Comet Modular MegaExo Boost, 30t Megatooth Crmo Chainring

2017 SR Suntour Raidon 32 RLR DS-27.5 Plus; 1-1/8 - 1.5in Tapered Alloy Steerer, 120mm Travel, Air Spring w/ Remote Lockout, Boost 150x110mm Thru-Axle

6061-T6 Series Alloy Hardtail Frame, 27.5" Plus / 29" Geometry, Tapered 1.5" Head Tube, 73mm BB Shell, 12X148mm Boost Thru-Axle Dropouts, Internal Cable Routing

Ritchey MTN Trail Low Riser, 20mm Rise, 740 / 760 mm Wide; 9 Deg. Sweep

FPD Dozer-1048 w/ 1.5" ACB Bottom For 44/56mm Head Tube

2017 Shimano SLX, RD-M7000, SGS 10/11-Spd Top Normal, Shadow Plus

WTB Scraper i40 27.5"Plus, 45mm Width, Alloy DW Rims w/ TCS i40 Rim Tape, Pivit Boost Alloy Disc Hubs, 32h, w/ Sealed Bearings, Thru-Axles 150x110mm Front & 12X148mm Rear, 11-Spd Cassette

Ritchey Trail 2-Bolts, Alloy Micro Adjust 31.6mm

2017 Shimano SLX, SL-M7000, 1x11-Spd, Right Side Only, w/o Optical Gear Display

Pivit Alloy Trail, Cold Forged, 0 Deg. 4-Bolts, 60 To 70mm Ext.

Kenda Havoc 27.5x3.0", TCS, Aramid Bead 60 tpi

Trust the Subvert HT5, a Plus hardtail designed to carry you with reliable ease through your wildest days. Start with a high-end 6061-T6 alloy frame engineered around 27.5" Plus wheels, and the comfort and control of 3.0 Plus tires. Add a simple and effective 1x11 drive train featuring all new Shimano SLX 7000 components, a new FSA Comet 1x crankset, and a Suntour Raidon fork. A revamped Ritchey cockpit rounds out a component package that is light, effective, and all-day-durable.

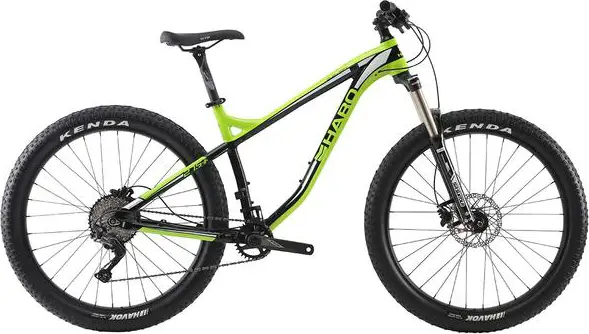

Haro Subvert HT5

14.5"

20.5"

A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.

Frame	Aluminum
Suspension	Hardtail, 120mm
Fork	Suntour RAIDON
Wheels	27.5″ Aluminum
Drivetrain	1 × 11
Groupset	SLX
Brakes	Shimano Hydraulic Disc

Frame	6061-T6 Series Alloy Hardtail Frame, 27.5" Plus / 29" Geometry, Tapered 1.5" Head Tube, 73mm BB Shell, 12X148mm Boost Thru-Axle Dropouts, Internal Cable Routing
Fork	2017 SR Suntour Raidon 32 RLR DS-27.5 Plus; 1-1/8 - 1.5in Tapered Alloy Steerer, 120mm Travel, Air Spring w/ Remote Lockout, Boost 150x110mm Thru-Axle Travel: 120mm Spring Type: Air
Shock	N/A
Bottom Bracket	Mega Exo BB-7100 Boost
Headset	FPD Dozer-1048 w/ 1.5" ACB Bottom For 44/56mm Head Tube
Stem	Pivit Alloy Trail, Cold Forged, 0 Deg. 4-Bolts, 60 To 70mm Ext.
Handlebar	Ritchey MTN Trail Low Riser, 20mm Rise, 740 / 760 mm Wide; 9 Deg. Sweep
Saddle	WTB Rocket Sport
Seatpost	Ritchey Trail 2-Bolts, Alloy Micro Adjust 31.6mm Type: Rigid
Pedals	N/A

Rear Derailleur	2017 Shimano SLX, RD-M7000, SGS 10/11-Spd Top Normal, Shadow Plus
Front Derailleur	N/A
Crank	FSA Comet Modular MegaExo Boost, 30t Megatooth Crmo Chainring
Shifters	2017 Shimano SLX, SL-M7000, 1x11-Spd, Right Side Only, w/o Optical Gear Display
Cassette	Shimano CS-M7000, 11-42t, 11-Spd
Chain	KMC X11-1 NP/GY, 1/2" X 11/128", 1x11 Specific
Brakes	Shimano BR-M395 Hydraulic 180/160mm Rotors Type: Shimano Hydraulic Disc
Brake Levers	Shimano BL-M396

Rims	WTB Scraper i40 27.5"Plus, 45mm Width, Alloy DW Rims w/ TCS i40 Rim Tape, Pivit Boost Alloy Disc Hubs, 32h, w/ Sealed Bearings, Thru-Axles 150x110mm Front & 12X148mm Rear, 11-Spd Cassette
Tires	Kenda Havoc 27.5x3.0", TCS, Aramid Bead 60 tpi

2017 HaroSubvert HT5

2017 Haro
Subvert HT5
